2 Gang Recessed-Mount Drop In Floor Box-Brushed Aluminum Cover
Two Gang, Recessed Mount, Drop In Floor Box With Hybrid Aluminum Cover And Two 15A(TR) Receptacles
Part Number: RCFB-2-A
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN, RCFB Series Boxes and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Single Flip Lid
Cover Shape: Rectangular
Finish Color: Aluminum
Box Material: Stamped Steel
Box Capacity: 2G
Service Capacity: Dual
Plug Connection Type: Recessed
Receptacle Included: Duplex 15A
Description

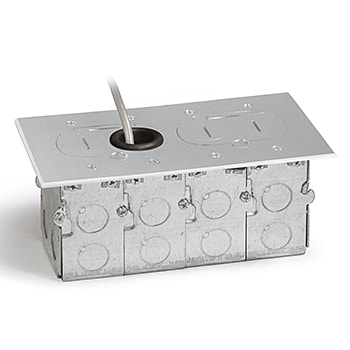

Recessed hybrid two-gang floor box
The Lew Electric RCFB-2-A allows you to plug into your floor box and not have the plugs visible creating a low profile look. The box allows you to hide your plug ends in the box by plugging in your cord ends low in the box, and not at the surface. This creates a more flush look and eliminates tripping hazards. Rubber grommets are included to protect the cords around the hole in the aluminum cover when they are in use.
Inside the floor box are two duplex 15A outlets, the plugs are tamper proof. Also included is an empty 4 port keystone plate giving you the option to replace one of the outlets and add your own keystone jacks in the box for data, communication, or video. Plate screws are included to attach the plate to the receptacle box. The box may be attached directly to the subfloor or routed into a finished floor. The cover has four screw plugs that give you access to the outlets. The box features a watertight assembly, there is a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The box is UL listed, and the receptacle is UL listed and meets heavy duty requirements for display receptacles. There are several 1/2″ conduit connections in the back box to run your cable into the box. This floor box is a simple and economical solution to provide your power and even data in a small and attractive plate, with no unsightly plugs showing.
Also included: One RRP-2-PQ quad port
Replacement cover: RCFB-2-AP
Replacement plug: 6214 (Aluminum)
Specifications
❒ 5 1/16″Wx8 5/8″Lx4″H ❒ 72 Cu.In.
Plate: 1/8″ aluminum
Outlet: 2 duplex 15A tamper proof
Includes 4 port empty keystone plate
4 screw plugs for access
Connect low in the box to hide your plugs
Watertight assembly
Attach to floor or route into finished floor
Includes 1/16″ neoprene rubber gasket
Box UL # E345966
Outlet UL # E309821
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size: 8.5″ x 5″
Back box size: 7.5″L x 3″W x 3.5″H
Size: 2 gang divided
Warranty: 1 year
FEATURES & BENEFITS
❒ Water tight close up plugs
❒ Rubber grommets provided for wire protection
UL & NEMA
❒ Box UL #E345966
❒ Tamper resistant receptacle UL #E309821 (duplex)
