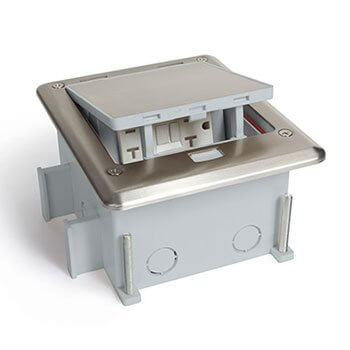

Outdoor Floor Box-Concrete Pour
Outdoor Floor Box With Stainless Cover; Push Button Open; Fully Ip66 Rated Waterproof (When In Closed Position). Includes Wrench For Inside Wire Connections.
Part Number: OB-1-SP
Application Selector: Outdoor
Type: Floor Box
Product Family: OB-1 Series Floor Box, Outdoor Power Solutions
Floor Box Type: Rectangular Concrete
Finish Floor Type: Concrete
Cover Shape: Rectangular
Finish Color: Stainless
Box Material: PVC
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Recessed
Receptacle Included: Duplex 20A GFCI
Description
Great for pools decks, patios, outdoor kitchens Key Features: You can plug in any device you can imagine while enjoying the sunshine! Outdoor floor box with stainless cover; Push Button Open; Fully IP66 rated water proof (when in closed position). Includes wrench for inside wire connections.
- Intertek IP66 RATED BOX (when in closed position)
- UL Listed Receptacle: E473428
- Tamper Proof opening (with hex key option)
- Gangable; Can be used indoor or outdoor
- Includes weather resistant U.L. listed receptacle
- Patent protected
- Stainless Steel #316: increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and provides increased strength at elevated temperatures.
Specifications
- Cover is 6 7/8″ L x 5 11/16″ W
- Overall height with box is 3 5/8″ minimum depth can be adjusted upwards of 1 3/4″
- Box dimensions are 5 1/4″ L x 4 3/4″ W
(the cover hangs over more on one side of the box than the other)
- Box dimensions are 5 1/4″ L x 4 3/4″ W
