Home » Products » 5 3⁄4″ Round Flanged Cover – Brushed Aluminum

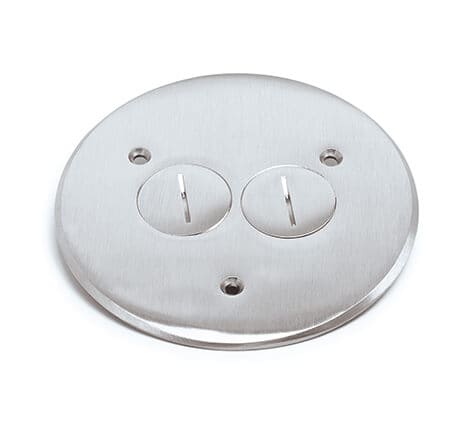

5 3⁄4″ Round Flanged Cover – Brushed Aluminum

5 3⁄4″ brushed aluminum flanged floor box cover with two 1 1⁄2″ screw plugs, designed for duplex outlet (outlet (receptacle)) applications.

Part Number: TCP-2-A

Application Selector: Commercial, Residential

Type: Cover

Product Family: 32 Series Round Boxes Covers and Flanges, 812-DA Series Boxes Covers and Flanges, Covers and Flanges, FB Series Boxes and Covers, POWERDEN™ Residential Floor Boxes, PowerPRO™ Commercial Floor Boxes, Standard Metal Covers

Finish Floor Type: Carpet, Tile, Wood

Floor Box Cover Type: Screw Plug

Cover Shape: Round

Finish Color: Aluminum



5 3⁄4″ Round Flanged Cover – Brushed Aluminum


    https://staging.lewelectric.com/wp-content/uploads/2016/01/TCP-2-A_96dpi.jpg
    https://staging.lewelectric.com/wp-content/uploads/2016/01/TCP-2-A_96dpi-75x75.jpg

    Description

    The Lew Electric TCP-2-A is a 5 3⁄4″ seamless flanged, round brushed aluminum cover that features two 1 1⁄2″ plugs. The cover is designed for duplex receptacle applications in the 812, 32 and FB Series boxes. It includes a cork gasket and three 8/32 x 1/2″ cover screws.

    The Lew Electric TCP-2-A is ETL listed for USA and Canada installations and Conforms to UL Standard #514D and CSA Standard #C22.2 #42

    Replacement Plug: 6213-A (Brushed Aluminum)

    Certifications and Compliances

    Intertek_ETL_Listed_C_US

    • ETL file #4004534
    • Conforms to UL Standard 514D and CSA Standard C22.2 #42
    Resources
    TCP-2 (ALL COLORS) DWG Drawing
    Download
    TCP-2-A PDF Drawing
    Download
