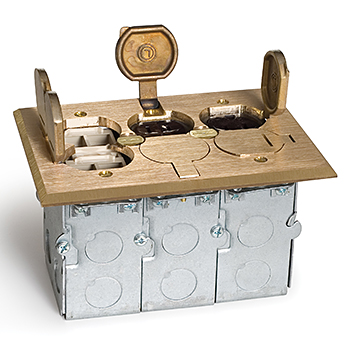

3 Gang Drop In Floor Box-Brass Cover
Three Gang, Drop In Floor Box With Brass Six Flip Lid Cover And Three 15A(TR) Duplex Receptacles (Also Includes One RRP-2-PQ Quad Port)
Part Number: SWB-6-LR
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN, SWB Series Boxes and Replacement Covers, SWB-6 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Six Flip Lid
Cover Shape: Rectangular
Finish Color: Brass
Box Material: Stamped Steel
Box Capacity: 3G
Service Capacity: Triple
Plug Connection Type: Surface
Receptacle Included: Duplex 15A & Quad Port Low Volt
Description
Recessed Floor Plate with Box, Three 15A-TR-Duplex Receptacles, 6 Flip Lids, Brass
The Lew Electric SWB-6-LR is a recessed floor plate with brass flip lid cover, three single gang stamped steel boxes and adjusting sleeves. Inside the floor box are three UL listed, 15A-TR-Duplex Receptacles. The adjusting sleeves are adjustable up to 3/4″ to accommodate any floor. The box features six water tight flip lids and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.
Specifications
- Plate: 1/4″ Brass
- Outlet: Three 15A, TR duplex receptacles and One RRP-2-PQ quad port device
- 6 watertight flip lids
- Adjustable up to 3/4″
- Includes 1/16″ neoprene rubber gasket
- Cover size: 5″ x 6 7/8″
- Back box size: 6″L x 3″W x 3.5″H
- Cutout size: Can’t exceed 6 1/8″ x 3 1/2″
- Capacity: 54 cubic inches
- Warranty: 1 year
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
FEATURES & BENEFITS
- Versatile power or communications applications
- Water tight assembly
- 1/2″ Conduit knockouts
- Adjustable up to 3/4″ to accommodate any floor
- Includes one RRP-2-PQ quad port for Comm./Data
