3 Gang Drop In Floor Box – Brushed Aluminum Cover
Three gang, drop in floor box with brushed aluminum screw plug cover and three 15A (TR) duplex outlets (receptacles). Also includes one RRP-2-PQ quad port device.
Part Number: SWB-6-A
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN™ Residential Floor Boxes, SWB Series Boxes and Replacement Covers, SWB-6 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Screw Plug
Cover Shape: Rectangular
Finish Color: Aluminum
Box Material: Stamped Steel
Box Capacity: 3G
Service Capacity: Triple
Plug Connection Type: Surface
Receptacle Included: Duplex 15A & Quad Port Low Volt
Description

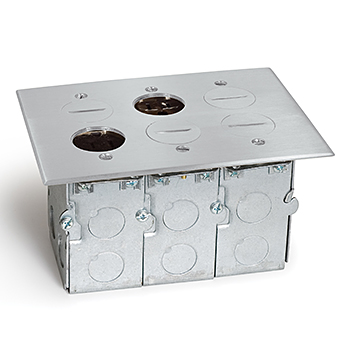

The Lew Electric SWB-6-A is a three gang, divided, dual use drop in style floor box with a brushed aluminum screw plug cover, three assembled single gang stamped steel boxes (with dividers) and three adjusting sleeves. Inside the floor box are three UL listed 15 AMP (TR) duplex receptacles, each attached to a mounting plate with a water tight gasket surrounding the receptacle. A second neoprene gasket surrounds the underside of the cover, preventing spills from accessing the receptacle. A Lew RRP-2-PQ quad port Comm./Data device is also included to replace one of the receptacles if warranted. This allows for line voltage and Comm./Data to be utilized in the same box. The cover features six 1 1/4″ water tight close up screw plugs. The UL listed stamped steel box is designed for subfloor installation and the 1/2″ ko’s on all sides of the box makes cable entry easy and convenient. The included adjusting sleeves go inside the box to accommodate installation in finished floor depths up to 3/4″.
Replacement Cover: RRP-6-AP
Replacement Plug: 6212-A (Brushed Aluminum)
Certifications and Compliances
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
