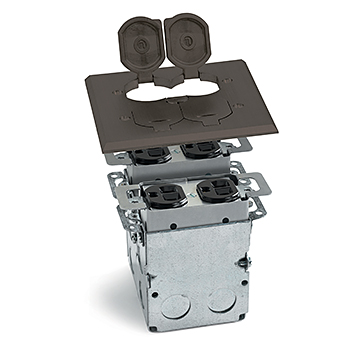

2 Gang Drop In Floor Box – Dark Bronze Cover
Two gang, drop in floor box with dark bronze dual flip lid cover and two 15A (TR) duplex outlets (receptacles).
Part Number: SWB-4-LR-DB
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN™ Residential Floor Boxes, SWB Series Boxes and Replacement Covers, SWB-4 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: 4 Flip Lid
Cover Shape: Square
Finish Color: Dark Bronze
Box Material: Stamped Steel
Box Capacity: 2G
Service Capacity: Dual
Plug Connection Type: Surface
Receptacle Included: Duplex 15A & Quad Port Low Volt
Description
The Lew Electric SWB-4-LR-DB is a two gang, divided, dual use, drop in style floor box with a dark bronze four flip lid cover, two assembled single gang stamped steel boxes (with divider) and two adjusting sleeves. Inside the floor box are two UL listed 15 AMP (TR) duplex receptacles, each attached to a mounting plate with a water tight gasket surrounding the receptacle. A second neoprene gasket surrounds the underside of the cover, preventing spills from accessing the receptacles. A Lew RRP-2-PQ quad port Comm./Data device is also included to replace one of the receptacles if warranted. This allows for line voltage and Comm./Data to be utilized in the same box. The cover features four 1 1/2″ water tight close up screw plugs. The UL listed stamped steel box is designed for subfloor installation and the 1/2″ ko’s on all sides of the box makes cable entry easy and convenient. The included adjusting sleeves go inside the box to accommodate installation in finished floor depths up to 3/4″.
Replacement Cover: RRP-4-DBP-LR
Certifications and Compliances
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
