2 Gang Drop In Floor Box-Dark Bronze Cover
Two Gang, Drop In Floor Box With Dark Bronze Plated Screw Plug Cover And Two 15A(TR) Duplex Receptacles
Part Number: SWB-4-DB
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN, SWB Series Boxes and Replacement Covers, SWB-4 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Screw Plug
Cover Shape: Square
Finish Color: Dark Bronze
Box Material: Stamped Steel
Box Capacity: 2G
Service Capacity: Dual
Plug Connection Type: Surface
Receptacle Included: Duplex 15A & Quad Port Low Volt
Description
Recessed Floor Plate with Box, Two 15A-TR-Duplex Receptacles, 4 Screw Plugs, Dark Bronze

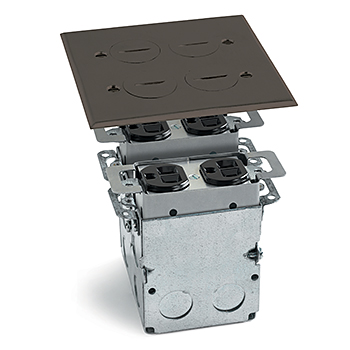

The Lew Electric SWB-4-DB is a recessed floor plate with dark bronze screw plug cover, two single gang stamped steel boxes and adjusting sleeves. Inside the floor box are two UL listed 15A-TR-Duplex Receptacles. The adjusting sleeves are adjustable up to 3/4″ to accommodate any floor. The box features four water tight close up screw plugs and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.
Replacement cover: RRP-4-DBP
Replacement Plug: 6212-DB (Dark Bronze)
Specifications
- Plate: 1/8″ Dark Bronze
- Outlet: Two 15A, TR duplex receptacles and One RRP-2-PQ quad port device
- 4 watertight screw plugs
- Adjustable up to 3/4″
- Includes 1/16″ neoprene rubber gasket
- Cover size: 5″ x 5″
- Back box size: Back box size: 4″L x 3″W x 3.5″H
- Cutout size: Can’t exceed 4 1/8″ x 3 1/2″
- Capacity: 36 cubic inches
- Warranty: 1 year
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
FEATURES & BENEFITS
- Versatile power or communications applications
- Water tight assembly
- 1/2″ Conduit knockouts
- Adjustable up to 3/4″ to accommodate any floor
- Includes one RRP-2-PQ quad port for Comm./Data
