Duplex Drop In Floor Box – Dark Bronze Cover
One gang, drop in floor box with dark bronze dual flip cover and 15A (TR) duplex outlet (receptacle).
Part Number: SWB-2-LR-DB
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN™ Residential Floor Boxes, SWB Series Boxes and Replacement Covers, SWB-2 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Dual Flip Lid
Cover Shape: Rectangular
Finish Color: Dark Bronze
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Receptacle Included: Duplex 15A
Description

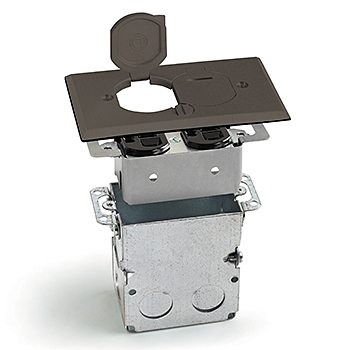

The Lew Electric SWB-2-LR-DB is a drop in style floor box with a dark bronze dual flip lid cover, single gang stamped steel box and adjusting sleeve. Inside the floor box is a UL listed,15 AMP (TR) duplex receptacle attached to a mounting plate with a water tight gasket surrounding the receptacle. A second neoprene gasket surrounds the underside of the cover, preventing spills from accessing the receptacle. The cover features two water tight flip lids. The stamped steel box is also UL listed and is designed for subfloor installation. Inside the box is a metal adjusting sleeve, designed to accommodate any floor depth up to 3/4″.
Replacement Cover: RRP-2-LR-DBR
Certifications and Compliances
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
