Duplex Drop In Floor Box – Brushed Aluminum Cover
One gang, drop in floor box with brushed aluminum dual flip cover and 15A (TR) duplex outlet (receptacle).
Part Number: SWB-2-LR-A
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN™ Residential Floor Boxes, SWB Series Boxes and Replacement Covers, SWB-2 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Dual Flip Lid
Cover Shape: Rectangular
Finish Color: Aluminum
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Receptacle Included: Duplex 15A
Description

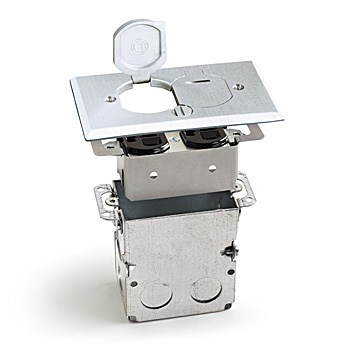

The Lew Electric SWB-2-LR-A is a drop in style floor box with a brushed aluminum dual flip lid cover, single gang stamped steel box and adjusting sleeve. Inside the floor box is a UL listed,15 AMP (TR) duplex receptacle attached to a mounting plate with a water tight gasket surrounding the receptacle. A second neoprene gasket surrounds the underside of the cover, preventing spills from accessing the receptacle. The cover features two water tight flip lids. The UL listed stamped steel box is designed for subfloor installation and the 1/2″ ko’s on all sides of the box makes cable entry easy and convenient. The included adjusting sleeves go inside the box to accommodate installation in finished floor depths up to 3/4″.
Replacement Cover: RRP-2-LR-AR
Certifications and Compliances
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
