Duplex Drop In Floor Box- Dark Bronze Cover
One Gang, Drop In Floor Box With Dark Bronze Plated Screw Plug Cover And 15A(TR) Duplex Receptacle
Part Number: SWB-2-DB
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN, SWB Series Boxes and Replacement Covers, SWB-2 Box Assemblies and Replacement Covers
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Screw Plug
Cover Shape: Rectangular
Finish Color: Dark Bronze
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Receptacle Included: Duplex 15A
Description
Recessed Floor Plate with Box, One 15A-TR-Duplex Receptacle, 2 Screw Plugs, Dark Bronze

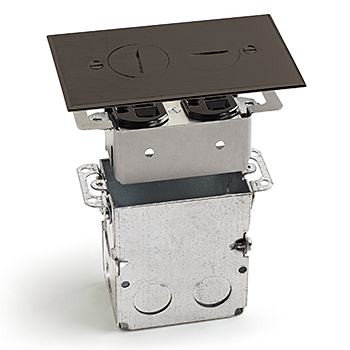

The Lew Electric SWB-2-DB is a recessed floor plate with dark bronze screw plug cover, single gang stamped steel box and adjusting sleeve. Inside the floor box is a UL listed 15A-TR-Duplex Receptacle. The adjusting sleeve is adjustable up to 3/4″ to accommodate any floor. The box features two water tight close up screw plugs and a durable 1/16″ neoprene rubber gasket that goes between the receptacle and plate. The stamped steel box is UL listed.
Replacement cover: RRP-2-DBR
Replacement plug: 6212-DB (Dark Bronze)
Specifications
- Plate: 1/8″ Dark Bronze
- Outlet: 15A, TR duplex receptacle
- 2 watertight screw plugs
- Adjustable up to 3/4″
- Includes 1/16″ neoprene rubber gasket
- Cover size: 4 5/8″ x 2 7/8″
- Back box size: 3″L x 2″W x 3.5″H
- Cutout size: Can’t exceed 2 1/8″ x 3 1/2″
- Capacity: 18 cubic inches
- Warranty: 1 year
UL & NEMA RECOGNITION
- Box UL #E345966
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
FEATURES & BENEFITS
- Versatile power or communications applications
- Water tight assembly
- 1/2″ Conduit knockouts
- Adjustable up to 3/4″ to accommodate any floor
