Duplex Floor Plate Assembly (No Box) – Nickel Silver Cover
Nickel, screw plug, floor plate assembly with 15A (TR) duplex outlet (receptacle).
Part Number: RRP-2-NS
Application Selector: Residential
Type: Top Assembly
Product Family: POWERDEN™ Residential Floor Boxes, RRP Series Cover Assemblies
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Screw Plug
Cover Shape: Rectangular
Finish Color: Nickel
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Receptacle Included: Duplex 15A
Description

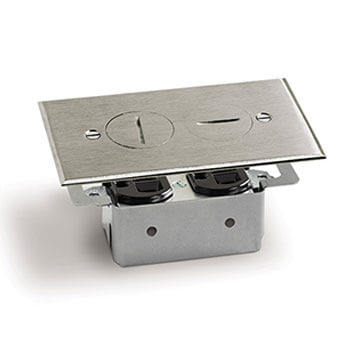

The Lew Electric RRP-2-NS is a drop in style floor plate assembly (no box) with a nickel silver screw plug cover and a UL listed,15 AMP (TR) duplex receptacle attached to a mounting plate with a water tight gasket surrounding the receptacle. A second neoprene gasket surrounds the underside of the cover, preventing spills from accessing the receptacle. The cover features two 1 1/4″ water tight close up plugs and the included adjusting sleeve helps accommodate installation in finished floor depths up to 3/4″ when paired with a standard single gang outlet box (not included).
Replacement Cover: RRP-2-NSR
Replacement Plug: 6212-NS (Nickel Silver)
Certifications and Compliances
UL & NEMA RECOGNITION
- Outlet UL # E309821
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
