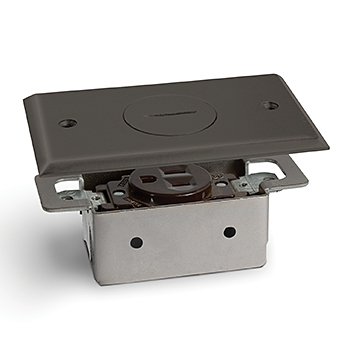

Single Floor Plate Assembly (No Box) – Dark Bronze Cover
Dark bronze, screw plug, floor plate assembly with 15A (TR) single outlet (receptacle).
Part Number: RRP-1-DB
Application Selector: Residential
Type: Top Assembly
Product Family: POWERDEN™ Residential Floor Boxes, RRP Series Cover Assemblies
Floor Box Type: Rectangular Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Screw Plug
Cover Shape: Rectangular
Finish Color: Brass
Receptacle Included: SINGLE 15A
Description
The Lew Electric RRP-1-DB is a drop in style floor plate assembly (no box) with a dark bronze plated screw plug cover and adjusting sleeve. Inside the adjusting sleeve is a UL listed,15 AMP (TR) single receptacle attached to a mounting plate with a water tight gasket surrounding the receptacle. A second neoprene gasket surrounds the underside of the cover, preventing spills from accessing the receptacle. An included adjustable sleeve helps accommodate installation in finished floor depths up to 3/4″ when paired with a standard single gang outlet box (not included).
Replacement Cover: RRP-1-DBR
Replacement Plug: 6213-DBP (Dark Bronze Plated)
Certifications and Compliances
UL & NEMA RECOGNITION
- Meets NEMA WD1-1983 heavy duty requirement for display receptacle
- All receptacles tamper resistant; UL listing #E333616 (duplex); E237396 (single)
