Round Single Receptacle Drop In Floor Box-Brass Cover
Round, Drop In Floor Box With Brass Spring Loaded Sing Flip Lid Metal Cover And 20A(TR) Single Receptacle
Part Number: RB-OB
Application Selector: Residential
Type: Floor Box
Product Family: POWERDEN, RB Series Boxes
Floor Box Type: Round Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Single Flip Lid
Cover Shape: Round
Finish Color: Brass
Box Material: Plastic
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Receptacle Included: Single 20A
Description
New Product! Single, 20A receptacle round plastic floor box with flip lid, Brass

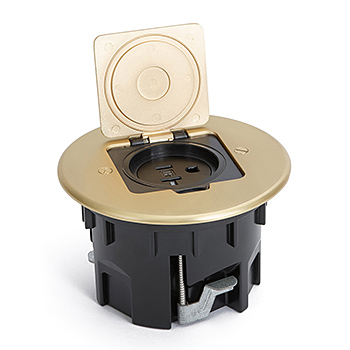

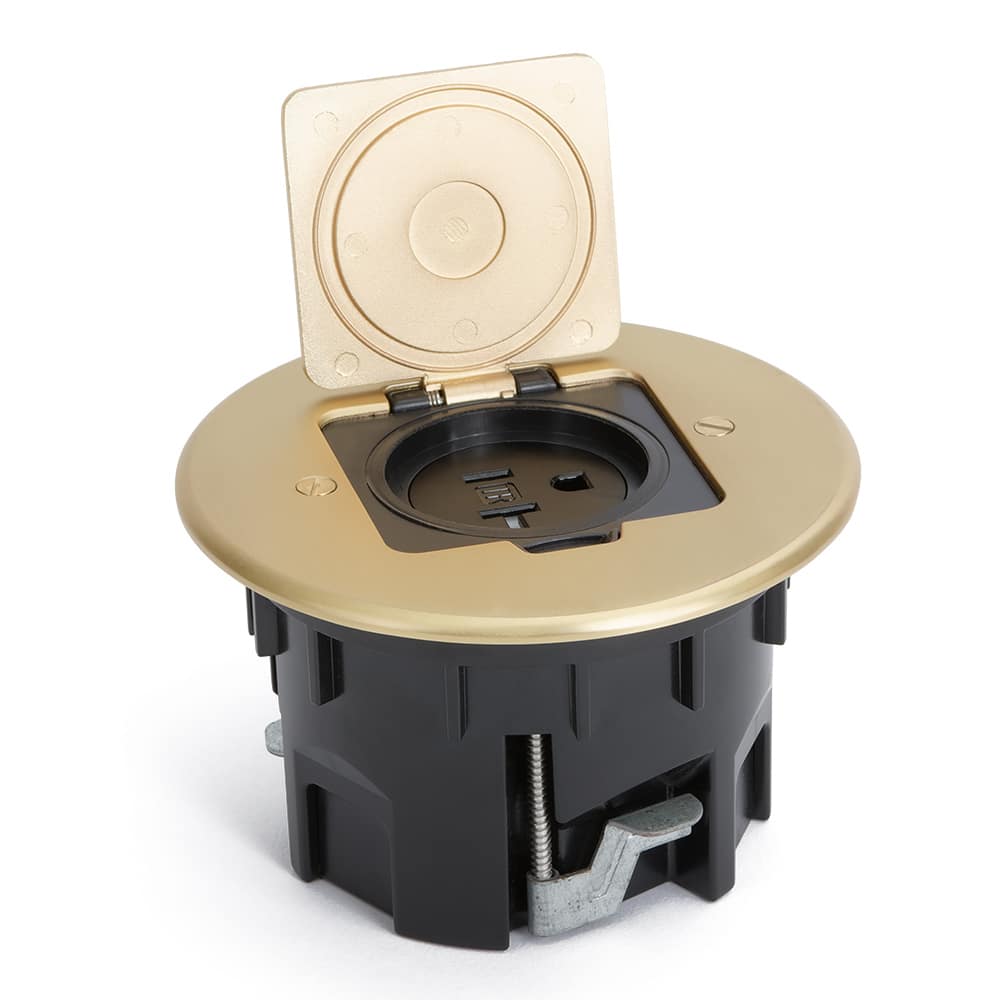

The Lew Electric RB-OB is an ETL listed plastic floor box, with a flip lid and round brass metal cover. The unit is designed for installation in a finished wood floor. Installation is made easy through a single round cut in the floor and securing the box from above the floor with two self-tightening screws that have a lip to secure the box to the bottom of the subfloor. Inside the floor box is a 20A-TR-Single receptacle. The bottom of the plastic box has slots for NMB cable as well as three ½” conduit openings.
Specifications
- 20-amp, tamper resistant single receptacle
- Round Cover: 4.3 inches
- Box Dimensions: 3.5 (w) x 2.65 (h)
- Brass metal top
- 15.3 cu.in capacity
- Maximum floor thickness is 2.5″
- For finished wood floors (not designed for subfloor installation)
Certifications and Compliances
- ETL file #4004534
- Conforms to UL 498
- Conforms CSA C22.2 #42
- UL listed receptacle #E309821
