Drop In Floor Box for PUFP Style Covers
Drop In Floor Box For PUFP Style Covers (Round & Square)
Part Number: PUFP-WB
Application Selector: Commercial, Residential
Type: Floor Box
Product Family: POWERDEN, PUFP Series Pop Up Floor Boxes and Covers, PUFP Series Pop-Up Floor Boxes and Covers, PowerPRO, Square Boxes And Assemblies, Square Boxes and Assemblies
Floor Box Type: Square Drop In
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Description

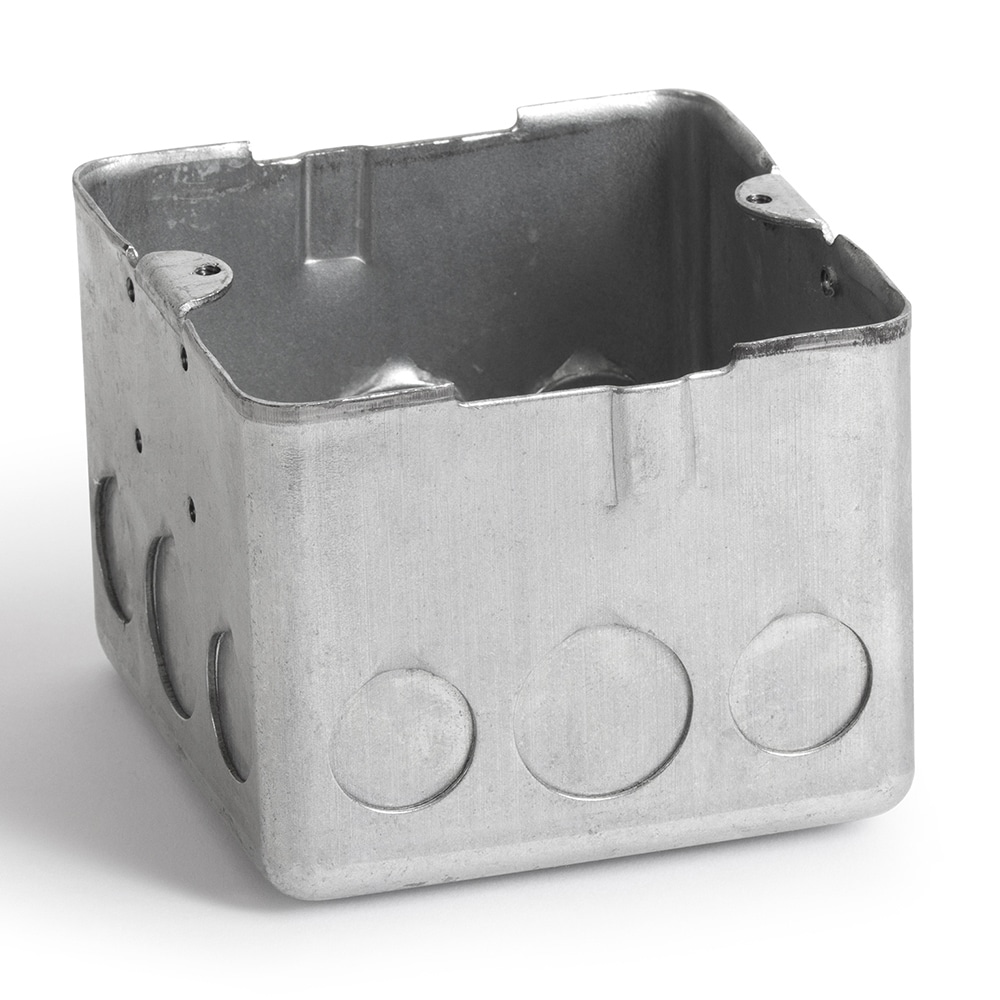

Wood floor box for PUFP plates
The Lew Electric PUFP-WB is a back box designed for the PUFP floor pop ups, to be used in wood floors only. The back box is 4″ x 4″, and only 3.19″ deep. There are several 1/2″ and 3/4″ knockouts to run your wire into the box.
Back box for PUFP floor pop ups
Use in wood floor only
Several 1/2″ and 3/4″ knockouts
1 year warranty
Specifications
| DIMENSIONS | |
| A (WIDTH) | B (HEIGHT) |
|
3 7/8″ |
3 1/8″ |
- UL recognized 498, 514A, 943, 1059,
and NEC 210.52(C).
CUL recognized 22.2 #’s 42, 158, and 18.1-04. - Pops up when in use
- Hides in the box when not in use
- For residential or commercial applications
- Installs in concrete or wood floors
- Scrub water tight construction
- All PUFP style supplied with tamper resistant receptacles
Certifications and Compliances
- ETL file #4004534
- Conforms to UL Standard 514A and CSA Standard C22.2 #18.1
