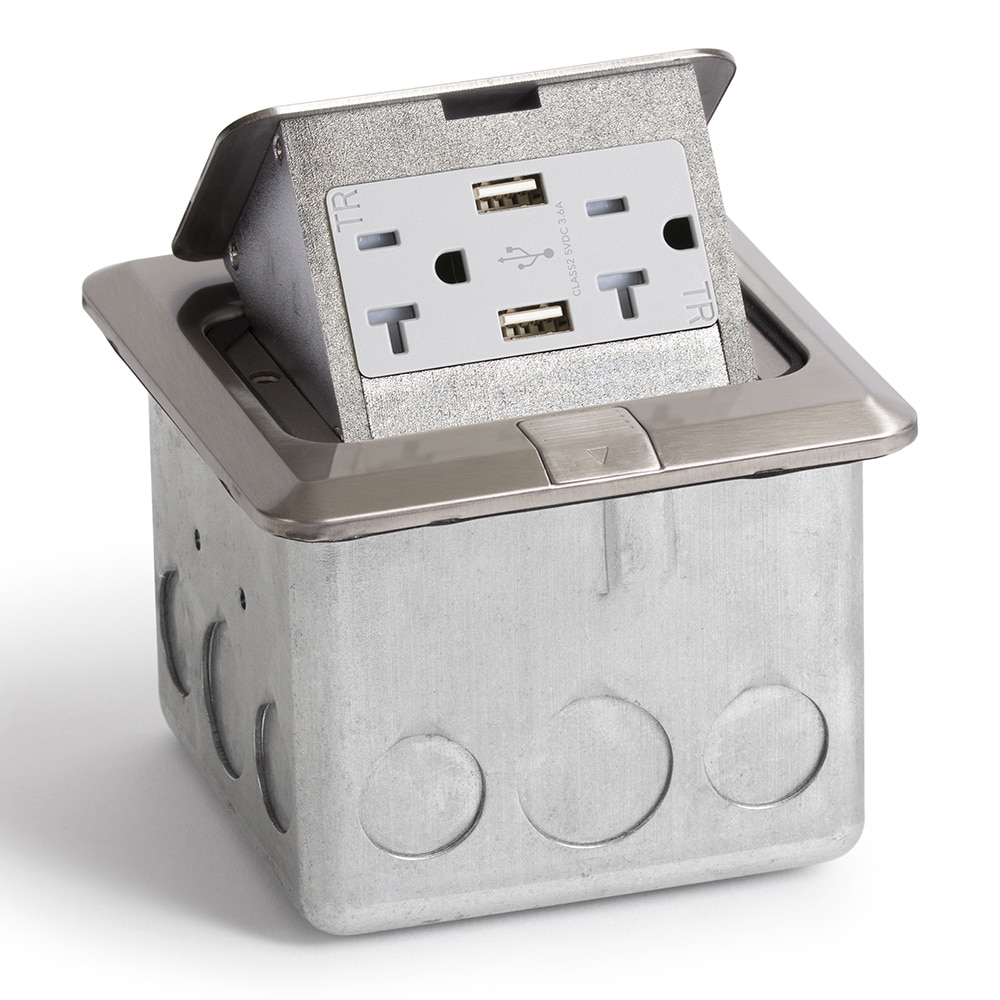

Square Pop-Up Floor Box (Decora/USB 20A) – Stainless Metal Cover
Stainless pop-up floor plate assembly with 20A (TR) Decora/ 2USB (AC) outlet (receptacle).
Part Number: PUFP-SQ-SS-20A-2USB
Application Selector: Commercial, Residential
Type: Floor Box
Product Family: POWERDEN™ Residential Floor Boxes, PUFP Series Pop-Up Floor Boxes and Covers, PowerPRO™ Commercial Floor Boxes, Square Boxes And Assemblies, Square Boxes and Assemblies
Floor Box Type: Square Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Pop Up
Cover Shape: Square
Finish Color: Stainless
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Above Surface
Receptacle Included: Duplex 20A 2USB (AA)
Description
The Lew Electric PUFP-SQ-SS-20A-2USB is a pop-up floor box assembly with a 4 3/4″ square stainless cover and stamped steel box. It is designed to be installed where it is not possible or convenient to have a wall outlet. When in the closed position, the UL listed, tamper resistant outlet (receptacle) is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The integrated Decora/ USB (AC) style duplex outlet (receptacle) is 20 AMP (TR) and has a quick port connector attached to it for fast and easy wiring. The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.
The Lew Electric PUFP-SQ-SS-20-2USB is ETL listed for USA and Canada installations and conforms to UL standard #498:(2017 Ed.16+R:31May2023) and CSA #C22.2#42
Certifications and Compliances
- ETL listed for USA installations and cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- cULus listed receptacle: E491706
- Water protection: IP44 Spill proof rated top
