Square Pop-Up Floor Box (Decora/USB)- Dark Bronze Cover
Dark Bronze Pop-Up Floor Plate Assembly With 15A(TR) Decora/2USB (AA) Receptacle
Part Number: PUFP-SQ-DB-USB
Application Selector: Commercial, Residential
Type: Floor Box
Product Family: POWERDEN, PUFP Series Pop Up Floor Boxes and Covers, PUFP Series Pop-Up Floor Boxes and Covers, PowerPRO, Square Boxes And Assemblies, Square Boxes and Assemblies
Floor Box Type: Square Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Pop Up
Cover Shape: Square
Finish Color: Dark Bronze
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Above Surface
Receptacle Included: Duplex 20A GFCI
Description
Pop Up floor plate assembly with 15A (TR) duplex Power/2USB Receptacle, Dark Bronze
Great for residential and commercial floor applications. Can also be used in desktop applications.
The Lew Electric PUFP-SQ-SS-USB is a pop up floor box designed to be hidden in the floor where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The outlet is a 15 Amp rated duplex/2USB with tamper resistant (TR) plugs.
The pop up features an IP44 water rating and is splash rated. There is also a gasket under the bezel to prevent water intrusion from underneath the cover.
Specifications
- 15A DUPLEX/2USB
- Dark Bronze metal top
- IP44 Splash proof rated
- Tamper resistant outlets
- Hardwired power
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering

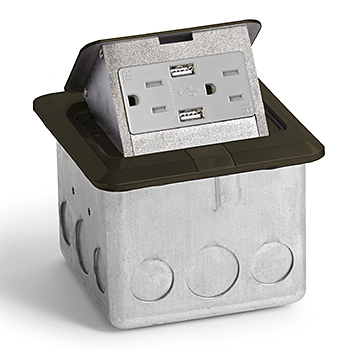

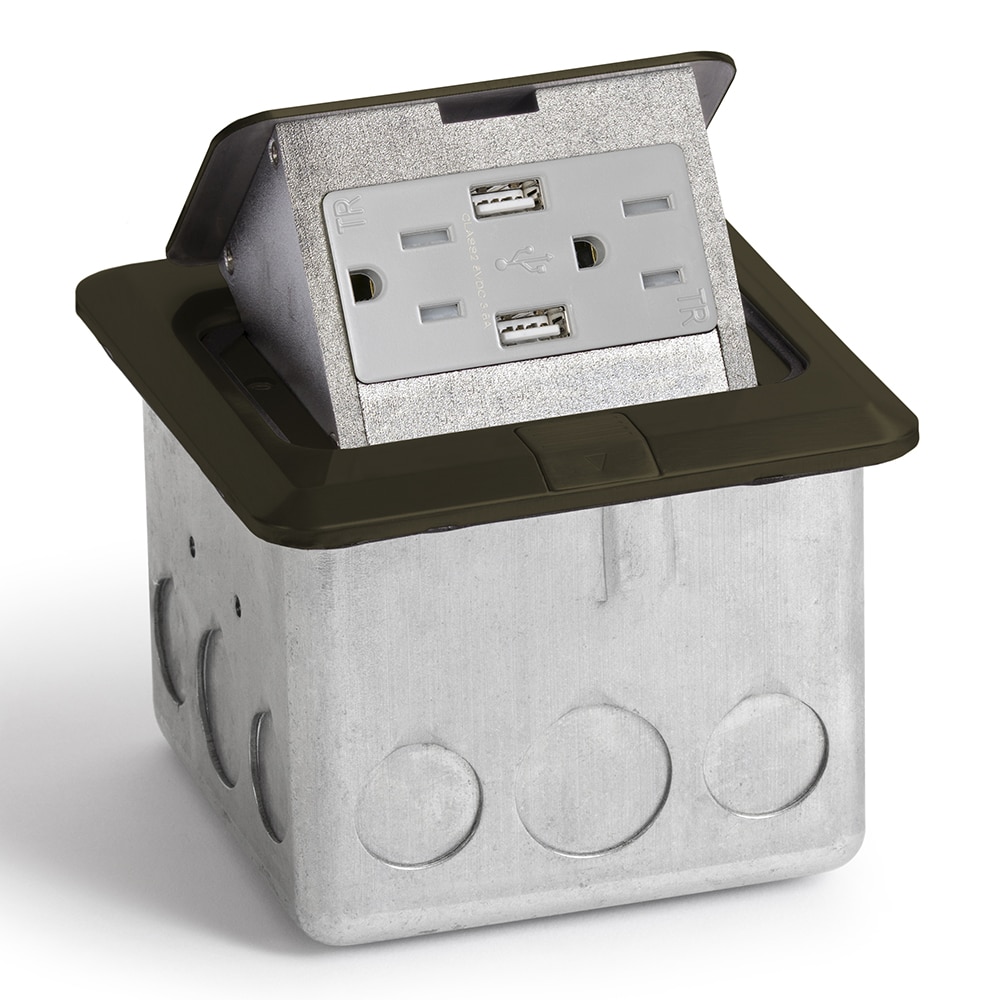

- Includes PUFP-CT-WB box shown in picture
- Bezel dimensions: 4 3/4″ X 4 3/4″
- Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
- PUFP-CT-WB BOX dimensions: 3 1/8″ x 4″
Conforms to UL STD.514A and 498;
Certified to CSA STD.C22.2.; No.18.1-04 and
42-M1984; LEW ELECTRIC FITTINGS CO
C-ETL-US #4004534
Certifications and Compliances
PUFP-SQ Series Safety and Certifications:
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- cULus listed receptacle: E491706
- Water protection: IP44 Spill proof rated top
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 1 year warranty
