Square Pop-Up Floor Box (GFCI)- Dark Bronze Cover
Dark bronze pop-up floor box with 20A (TR) GFCI outlet (receptacle).
Part Number: PUFP-SQ-DB-GFI
Application Selector: Commercial, Residential
Type: Floor Box
Product Family: POWERDEN™ Residential Floor Boxes, PUFP Series Pop-Up Floor Boxes and Covers, PowerPRO™ Commercial Floor Boxes, Square Boxes And Assemblies, Square Boxes and Assemblies
Floor Box Type: Square Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Pop Up
Cover Shape: Square
Finish Color: Dark Bronze
Box Material: Stamped Steel
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Above Surface
Receptacle Included: Duplex 15A Decora
Description

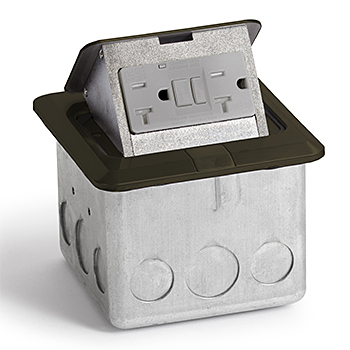

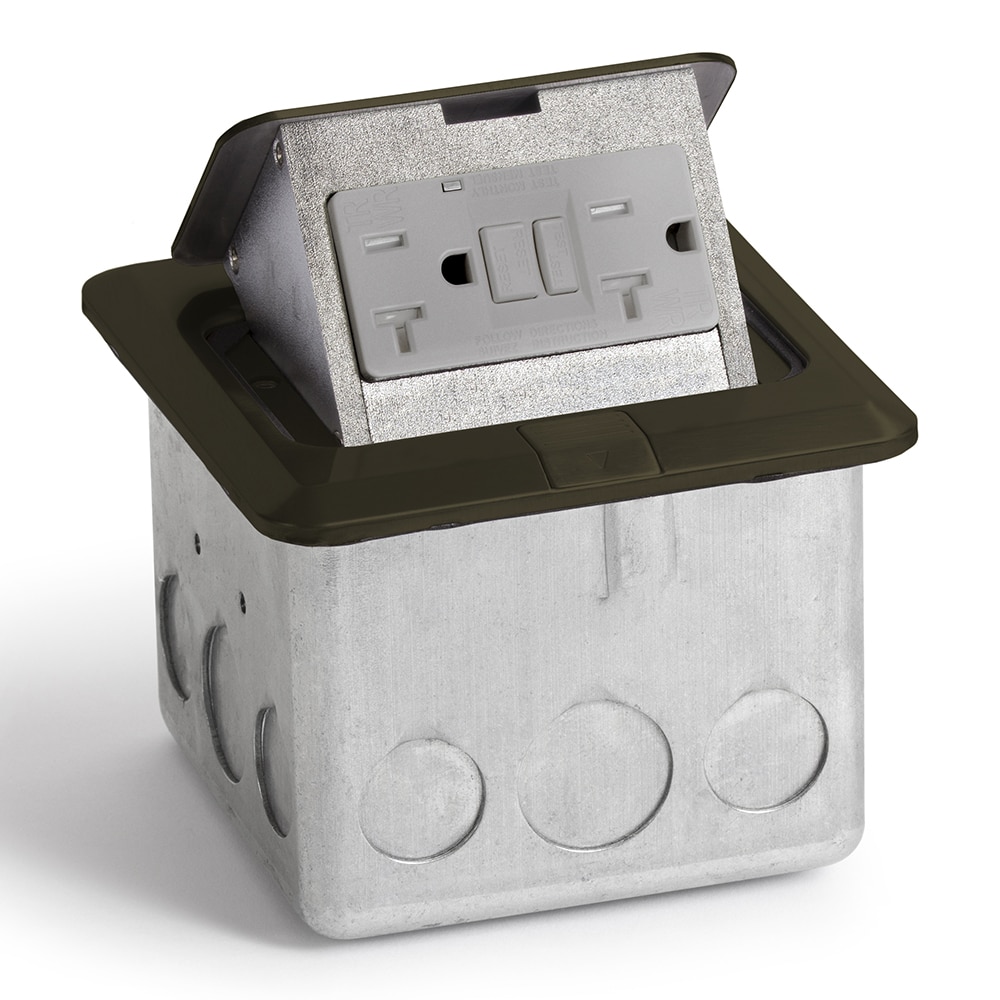

The Lew Electric PUFP-SQ-DB-GFI is a pop-up floor box assembly with a 4 3/4″ dark bronze brass cover and stamped steel box. It is designed to be installed where it is not possible or convenient to have a wall outlet. When in the closed position, the UL listed, tamper resistant outlet (receptacle) is hidden under the floor. When power is needed, simply pull the spring-loaded tab and the top raises up. The integrated GFCI style duplex outlet (receptacle) is 20 AMP (TR) and has a quick port connector attached to it for fast and easy wiring. The pop up features an IP44 water rating and is splash rated. There is also a gasket under the cover to prevent water intrusion from underneath the cover.
The Lew Electric PUFP-SQ-DB-GFI is ETL listed for USA and Canada installations and conforms to UL standard #498:2017 Ed.16+R:31May2023) and CSA #C22.2#42
Certifications and Compliances
- ETL listed for USA installations and cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- cULus listed receptacle: E473428
- Water protection: IP44 Spill proof rated top
