6 Inch Round Pop-Up Cover-Stainless
Six-Inch Stainless Pop-Up Floor Plate With With Six-Port Comm./Data Device
Part Number: PUFP-SC
Application Selector: Commercial, Residential
Type: Cover
Product Family: FB Series Boxes and Covers, POWERDEN, PUFP Series Pop Up Floor Boxes and Covers, PUFP Series Pop-Up Floor Boxes and Covers, Pop-Up Metal Covers, PowerPRO, Round Covers
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Pop Up
Cover Shape: Round
Finish Color: Stainless
Service Capacity: Single
Plug Connection Type: Above Surface
Description
Six Inch pop up floor plate with with six-port communication device, Stainless Steel

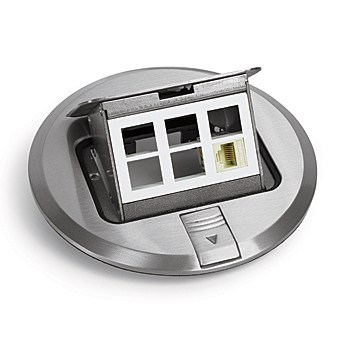

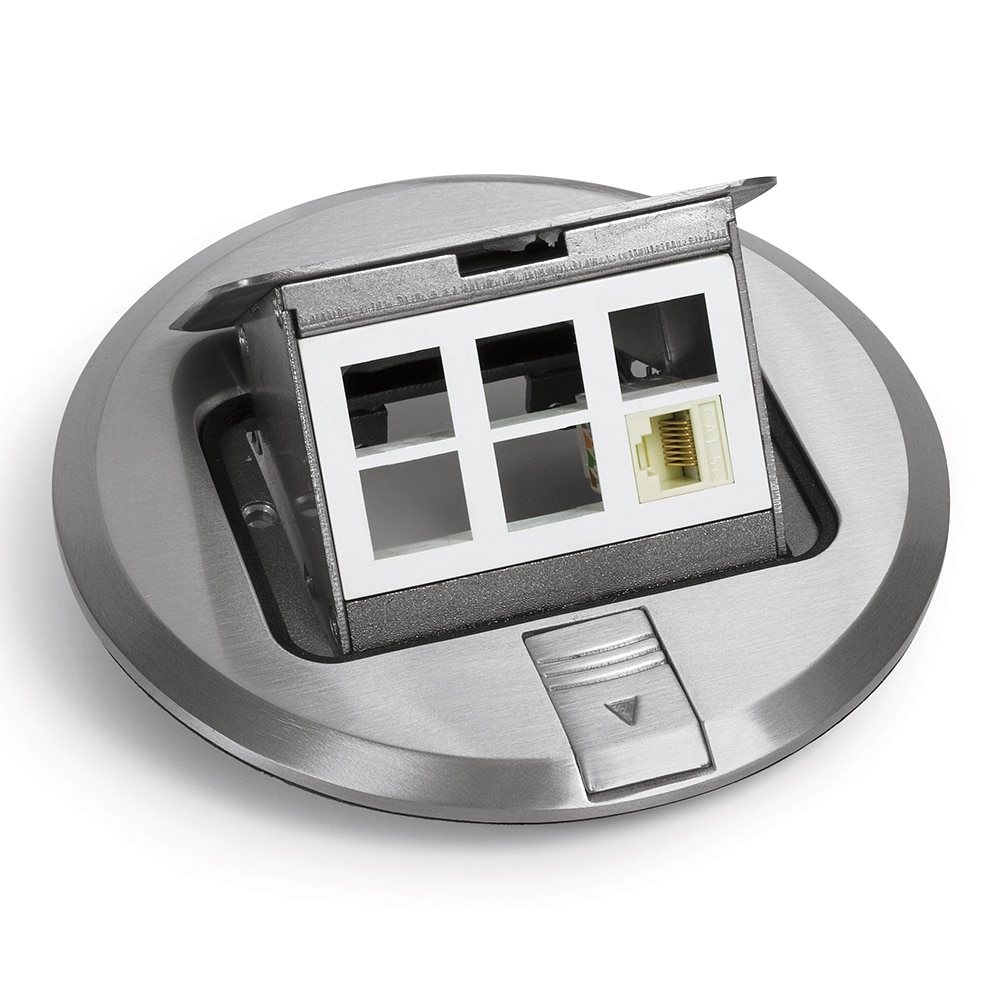

The Lew Electric PUFP-SC is a round floor box cover that provides data/com access in a hidden and attractive pop up. When closed the six port device is hidden beneath the floor. When the slide lever is pulled the top tilts open revealing the device. This pop up is perfect for any locations where hidden power is required, or locations where a wall outlet is not available. The unit as a whole is UL listed and is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water.
The pop up is a perfect choice for indoor residential or commercial applications in wood or concrete floors. For use in a subfloor application, the PUFP-WB wood floor box is required. For use in concrete, the PUFP-LRA leveling ring and FB round plastic floor box is required.
Specifications
Requires PUFP-LRA to mount to FB box
UL recognized components: PUFP series UL recognized 498; ETL listed P63
- Top: Stainless Steel
- Back box sold separately
- UL rated for USA installations
- cUL rated for Canadian installations
- 6 empty keystone ports
- Does not include Cat6 jack in picture
- Top: 6″ round
- Tamper resistant (TR) plugs
- Indoor residential or commercial installations
- UL listed receptacle
- Scrub water rated
- 1 year warranty
