Square Kitchen Countertop Pop-Up(Decora)-Dark Bronze Metal Cover
Kitchen Counter Pop-Up Power Outlet Assembly With 20A(TR) Decora Receptacle – Dark Bronze Metal Cover
Part Number: PUFP-CT-DB-DS-PB
Application Selector: Kitchen
Type: Kitchen Countertop Box
Product Family: Kitchen Power Solutions, PUFP-CT-Decora, PowerUp™ Square Pop-Ups-PUFP-CT Series
Cover Shape: Square
Finish Color: Dark Bronze
Box Material: Plastic
Service Capacity: Single
Plug Connection Type: Above Surface
Receptacle Included: Duplex 20A Decora Duplex 20A GFCI Duplex 20A 2USB (AC)
Description
[vc_row][vc_column][vc_column_text]
NEW! Kitchen Countertop Pop Up With 20A (TR) Decora Receptacle, Dark Bronze
Great for Kitchen counters, kitchen islands, desktops, home office, schools, retail outlets and hotel rooms

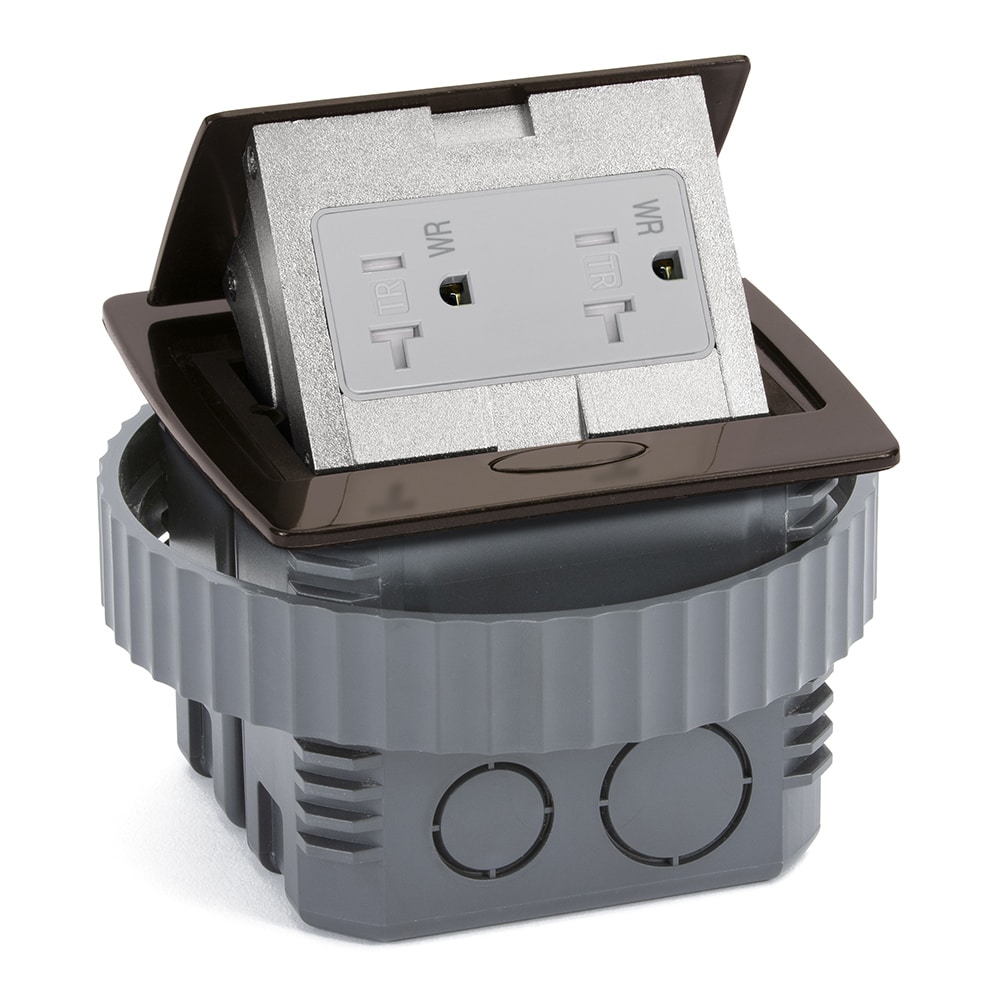

The Lew Electric PUFP-CT-DB-DS-PB countertop pop up box is designed to be hidden in a kitchen countertop or any other indoor surface where it is not possible or convenient to have a wall outlet. When in the closed position the outlet is hidden under the counter. When power is needed, simply press the spring-loaded button and the top raises up. The outlet is a 20 Amp rated Decora style, and has tamper resistant (TR) plugs.
Click here: Color Chip Sample Book for PUR and PUFP-CT Pop Up products
[/vc_column_text][/vc_column][/vc_row]
Specifications
- 20A DECORA
- Dark Bronze metal top
- Tamper resistant outlets
- Hardwired power
- Waterproof gasket under bezel *Consult with electrician and inspector before ordering
- Includes PUFP-CT-PB PLASTIC BOX shown in picture
- Bezel dimensions: 4 11/16″ X 4 11/16″
- Cutout dimensions: 4 1/8″ x 4 1/8″, ***It is recommended to have the product in hand before cutting***
- Space Needed Below Counter: 3″ minimum
- Counter thickness: 1/2″ to 2″
- PUFP-CT-PB BOX dimensions: 4″W x 4″L x 3 1/8″H
Conforms to UL standard 498;
Certified to CSA STD.C22.2.; No. 42-10;
LEW ELECTRIC FITTINGS CO
Certifications and Compliances
PUFP Series Safety and Certifications:
- ETL Certification Sheet – PDF
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL standard 498
- Certified to CSA STD.C22.2.; No. 42-10
- UL listed receptacle: E309821
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 2-year warranty
