6 Inch Round Pop-Up Cover-Brass
Six-Inch Round Brass Pop-Up Floor Plate With With 15A (TR) Decora Receptacle
Part Number: PUFP-BD
Application Selector: Commercial, Residential
Type: Cover
Product Family: FB Series Boxes and Covers, POWERDEN, PUFP Series Pop Up Floor Boxes and Covers, PUFP Series Pop-Up Floor Boxes and Covers, Pop-Up Metal Covers, PowerPRO, Round Covers
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Pop Up
Cover Shape: Round
Finish Color: Brass
Service Capacity: Single
Plug Connection Type: Above Surface
Receptacle Included: Duplex 15A Decora
Description
Six Inch pop up floor plate with with 15 amp (TR) Decora receptacle, Brass

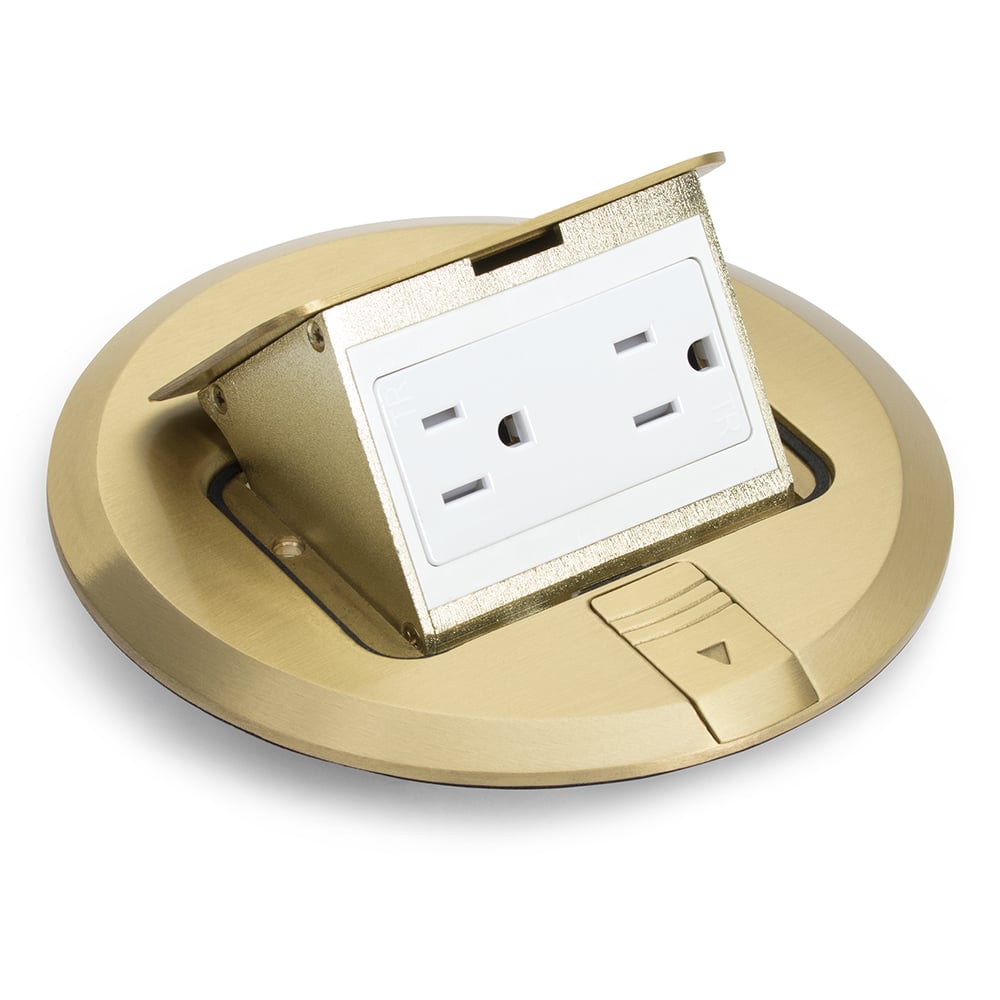

The Lew Electric PUFP-BD is a round floor box cover that provides duplex power in a hidden and attractive pop up. When closed the receptacle is hidden beneath the floor. When the slide lever is pulled the top tilts open revealing the receptacle. The decora receptacle is 15 amps with tamper resistant plugs, and is UL listed. This pop up is perfect for any locations where hidden power is required, or locations where a wall outlet is not available. The unit as a whole is UL listed and is also cUL recognized for Canadian installations. In the closed position the top is UL compliant to keep out dust and scrub water.
The pop up is a perfect choice for indoor residential or commercial applications in wood or concrete floors. For use in a subfloor application, the PUFP-WB wood floor box is required. For use in concrete, the PUFP-LRA leveling ring and FB round plastic floor box is required.
Specifications
Requires PUFP-LRA to mount to FB box
UL recognized components: PUFP series UL recognized 498; ETL listed P63
- Top: Brass
- Back box sold separately
- UL rated for USA installations
- cUL rated for Canadian installations
- Outlet: 15 amps
- Top: 6″ round
- Tamper resistant (TR) plugs
- Indoor residential or commercial installations
- UL listed receptacle: E309821
- Scrub water rated
- 1 year warranty
Certifications and Compliances
- ETL listed for USA installations, # 4004534
- cETL listed for Canada installation, # 4004534
- CSA approved for Canada, #C22.2
- Conforms to UL 514A and 498
- cULus listed receptacle: E309821
- Water protection: IP44 Spill proof rated top
- Tamper resistant (TR) plugs
- Gasket under bezel to keep water out
- RoHS and Proposition 65 compliant
- 1 year warranty
