Lew Electric Disposal Air Switch Kit, Nickel

NEW! LEW PDAS Garbage Disposal Air Switch Kit (Complete)

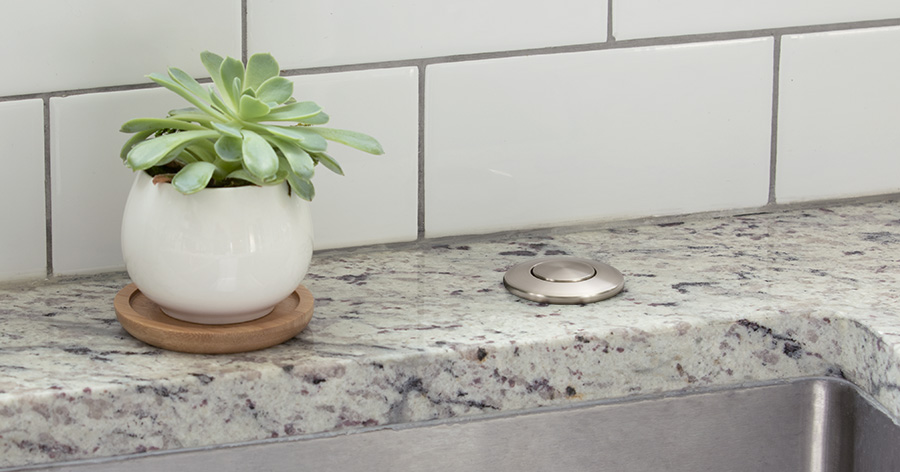

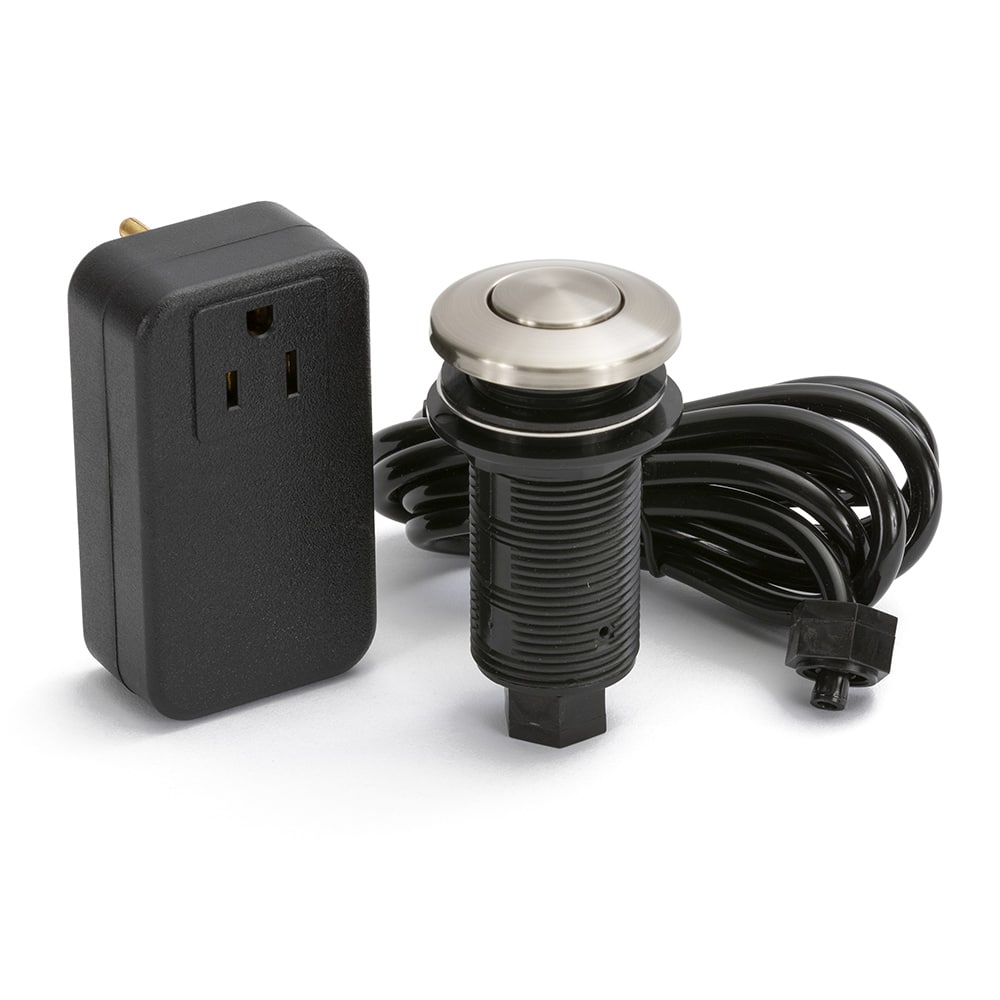

(PDAS-NP) The Lew Electric Garbage Disposal Air Switch Nickel kit consists of a metal button, metal trim ring, power controller, and 10 feet of air tubing. The round button is 1.75 inches in diameter and activates the garbage disposal by sending air to the ETL listed power controller. Simply press the button to turn the disposal on, then press again to turn it off. The PDAS kit comes in nine metal finishes to cover a wide variety of kitchen decors and is simple to install. The controller accepts any disposal rated up to 1 horsepower.

Additional color options:

BRASS Product #: PDAS-B	BLACK Product #: PDAS-BK	CHROME Product #: PDAS-CH
BLACK STAINLESS Product #: PDAS-BS	GRAPHITE Product #: PDAS-G	WHITE Product #: PDAS-WT
NICKEL Product #: PDAS-NP	DARK BRONZE Product #: PDAS-DB

Installation Guide – PDAS Series Garbage Disposal Air Switch:

• Color: Nickel
• 1.764″ top diameter
• 1 3/8″ cutout hole size
• Screw nut width needed under counter: 1.701″
• Includes button, controller, 10′ air tubing
• ETL listed for USA
• cETL listed for Canada
• Provides on/off function for up to 1HP disposal
• Install using a licensed electrician
• 1 year warranty

• ETL file #4004534
• Conforms to UL Standard 61058-1, 61058-1-1 and CSA Standard C22.2 #61058-1, 610-58-1-1
