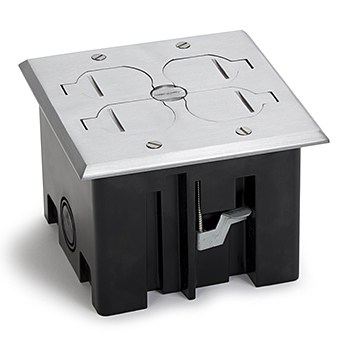

2 Gang Drop In Plastic Floor Box- Brushed Aluminum Cover
Two Gang, Plastic Drop In Floor Box With Aluminum Four Flip Lid Cover And Two 15A(TR) Duplex Receptacles (Also Includes RRP-2-PQ Quad Port)
Part Number: PB2-FPA
Application Selector: Residential
Type: Floor Box
Product Family: 2 Gang Box Assemblies and Replacement Covers, PB Series Boxes and Replacement Covers, POWERDEN
Floor Box Type: Square Drop In
Finish Floor Type: Carpet, Tile, Wood
Floor Box Cover Type: Dual Flip Lid
Cover Shape: Square
Finish Color: Brass
Box Material: Plastic
Box Capacity: 2G
Service Capacity: Double
Plug Connection Type: Surface
Receptacle Included: Duplex 15A & Quad Port Low Volt
Description
2 Duplex 15A Power Plastic Floor Box with Flip Lids – Aluminum Cover
The Lew Electric PB2-FBA is a plastic floor box with aluminum cover. Inside the box you will find two 15 amp duplex power receptacles with tamper proof plugs. The cover features 4 flip lids that provide quick access to your plugs in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.
The compact floor box is affordable, easy to install, and supplies power in any finished floor.
Specifications
Cover: Aluminum, 4 flip lids
Outlets: Two duplex 15A
Tamper resistant plugs
ETL listed for USA
cETL listed for Canada
ETL listing # 4004534
Conforms to UL514C
Interior capacity: 45 cubic inches
Cover dimensions: 5″ x 5″
Cutout dimensions: 4 5/16″ x 4 5/16″
Depth: 3 5/8″
Box material: Polymer
For indoor installations only
Wing screws secure box to sub floor
Plate and outlet screws provided
Warranty: 1 year
| DIMENSIONS | INTERIOR CAPACITY | ||
| L | W | H | 45 Cu. In. |
| 5″ |
5″ |
3 5/8“ | |
FEATURES & BENEFITS
❒ Lightweight polymer construction
❒ Options include choice of covers (aluminum or brass) and (flip lid or screw plug style)
❒ Economical savings over cast iron & stamped metal floor box assemblies
❒ Ease of installation
❒ Adjustable wing clamps for added installation support
❒ Conforms to UL514C
❒ ETL listing #4004534
Certifications and Compliances
- ETL file #4004534
- Conforms to UL Standard 514C and CSA Standard C22.2 #18.2
