Outdoor Countertop Box-Covered Space

Outdoor Kitchen Countertop Box With Stainless Push Button Cover; Fully IP66 Rated

Part Number: OB-2-CT-SP

Application Selector: Outdoor

Type: Kitchen Countertop Box

Product Family: OB-2 Series Countertop Box, Outdoor Power Solutions

Floor Box Type: Outdoor Countertop Box

Cover Shape: Rectangular

Finish Color: Stainless

Box Material: PVC

Box Capacity: 1G

Service Capacity: Single

Plug Connection Type: Recessed

Receptacle Included: Duplex 20A GFCI



Outdoor Countertop Box-Covered Space





    Description

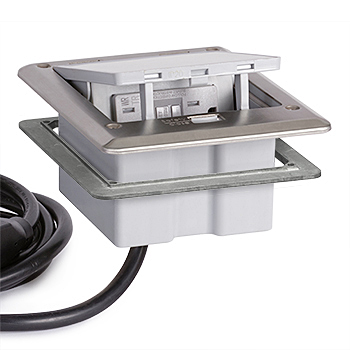

    Outdoor Kitchen Countertop Box with Stainless Push Button Cover; Fully IP66 Rated

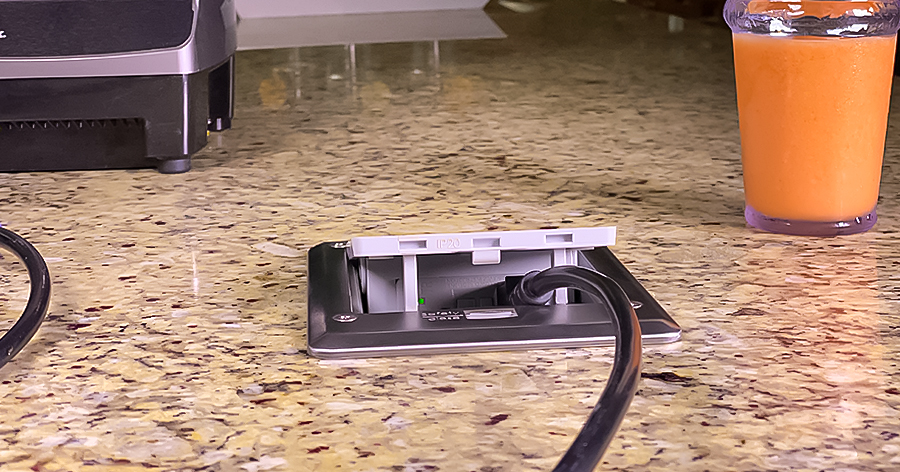

    The OB-2-CT-SP is a weatherproof countertop box for covered outdoor kitchens. It is fully IP66 rated when in the closed position. When in use, a 20 amp GFCI receptacle provides protection under a rust resistant stainless steel alloy cover. The cover uses a push button to open and close the lid. Installation is easy, requiring only a single rectangular cut in the countertop. The bottom portion of the box is secured to the underside of the countertop with a metal flange and four stainless screws. In the bottom of the plastic box is a drain hole to eliminate any water that may egress into the box. The OB-2-CT-SP is a fully ETL listed plug and play unit and includes a nine foot 20 AMP plug.

    Specifications

    Intertek-New-ISO-Registrar

    • Intertek IP66 RATED BOX (when in closed position)
    • UL Listed Receptacle: E473428
    • Tamper Proof opening
    • Includes weather resistant U.L. listed receptacle
    • Patent protected
    • Stainless Steel #316: increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and provides increased strength at elevated temperatures.
    • COVER DIMENSIONS: 6.8125 L X 5.625 W
    • Includes 9 foot 20amp cord
    Certifications and Compliances
    • ETL LISTED 4004534
    • Conforms to UL STD 962A AND 943
    • Certified to CSA STD C22.2#308 & 144.1
