Customizable, 2-Hour Fire Rated (concrete depth: 4.5″ minimum), Four Inch Core, Poke-Through Assembly

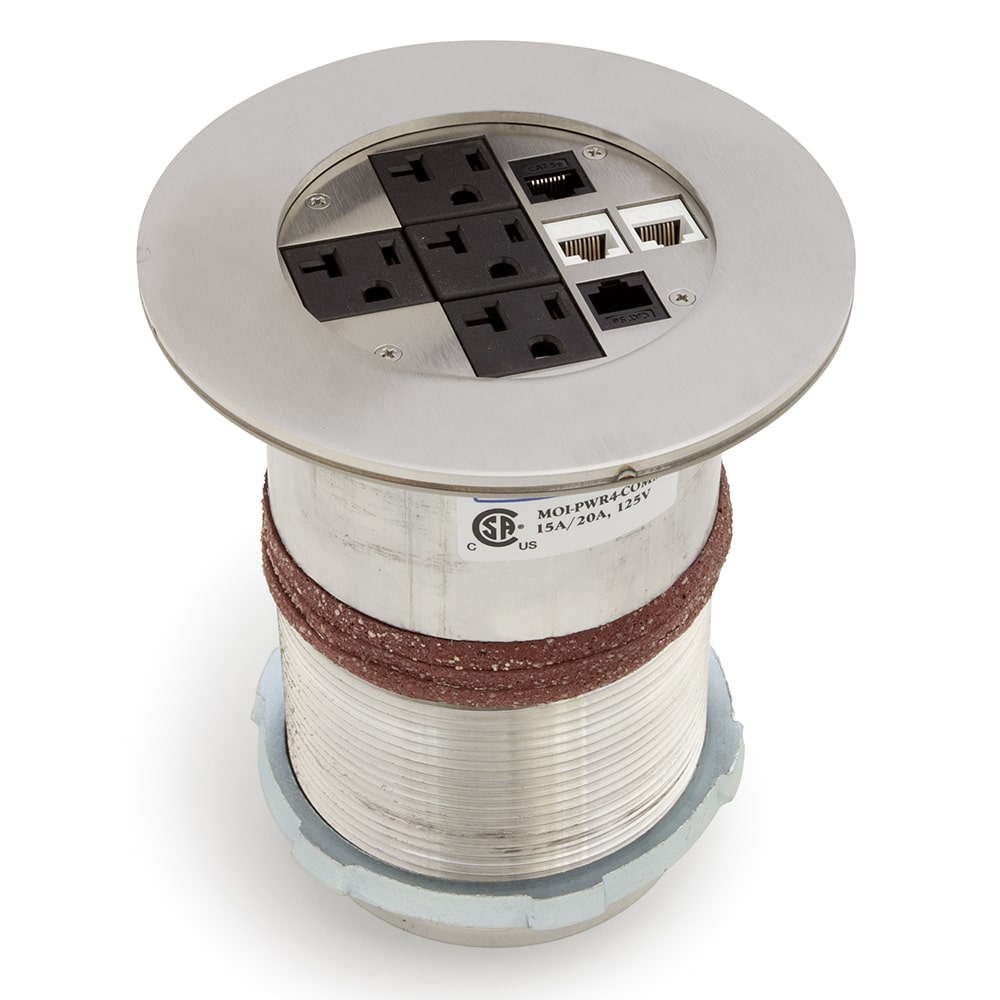

The MOI4 multi-connect is a four inch core, multi-use, flush to finished floor round poke-through assembly. It provides easy access to power, voice, and data connections in unobstructed flush-to-floor required applications. The attractive appearance and innovative design create option flexibility and functionality and is scrub test rated for any scenario. Using a four inch hole saw makes installation fast and easy. Future removal and reinstallation is easily accomplished if required. The box is UL 2-hour fire rated (concrete depth: 4.5″ minimum), for the USA and Canada and is also CSA approved for Canada.

The box is completely customizable with your choice of color, lid type, depth, and connectivity (power, communications, AV configurations).

 [/vc_column_text][vc_separator color=”black” border_width=”2″][vc_column_text]

How to order (PDF)

Order Form (PDF)

[/vc_column_text][vc_separator color=”black” border_width=”2″][vc_column_text]

Available cover and color options:

[/vc_column_text][vc_column_text css=”.vc_custom_1555530227678{margin-bottom: 0px !important;}”]

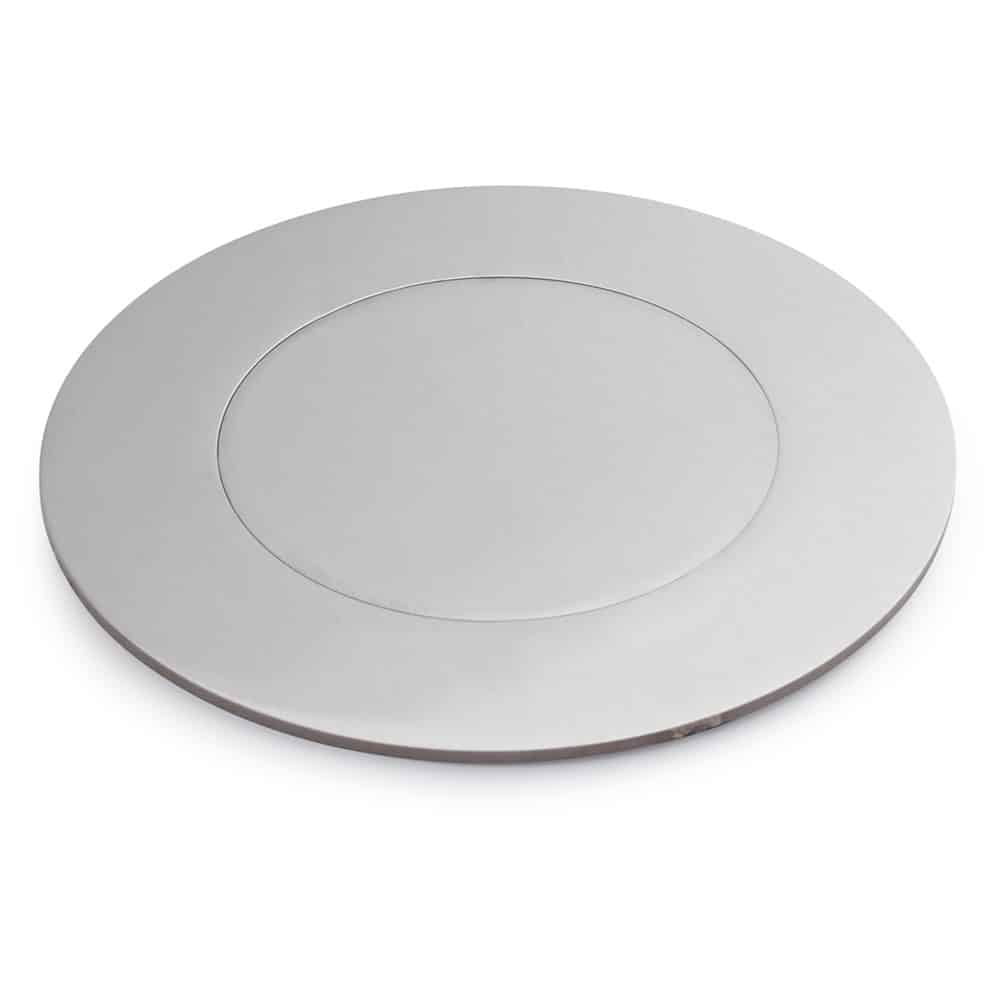

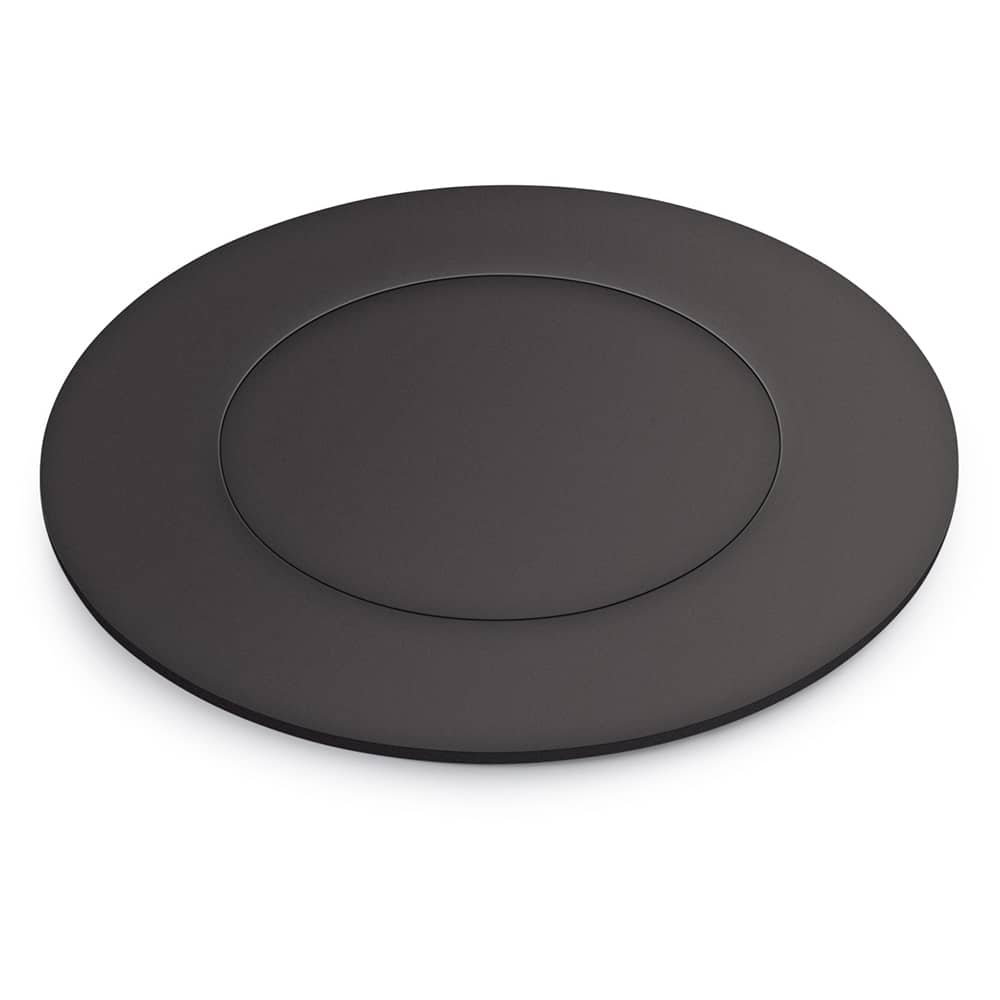

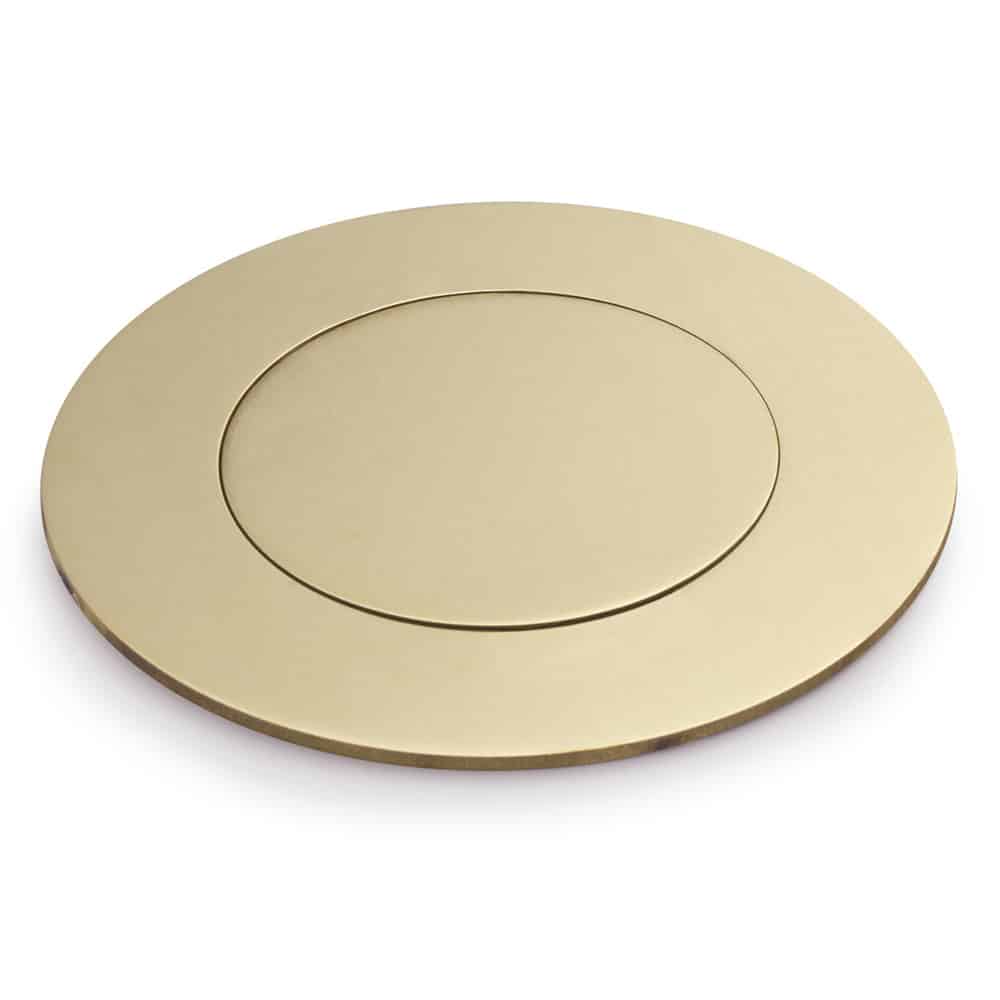

Drop Cover (Brass, Black, Stainless)

[/vc_column_text][vc_gallery type=”image_grid” images=”7019,7018,7014″ img_size=”130×130″ css=”.vc_custom_1555530102675{margin-top: 0px !important;}”][vc_column_text css=”.vc_custom_1555530208324{margin-bottom: 0px !important;}”]

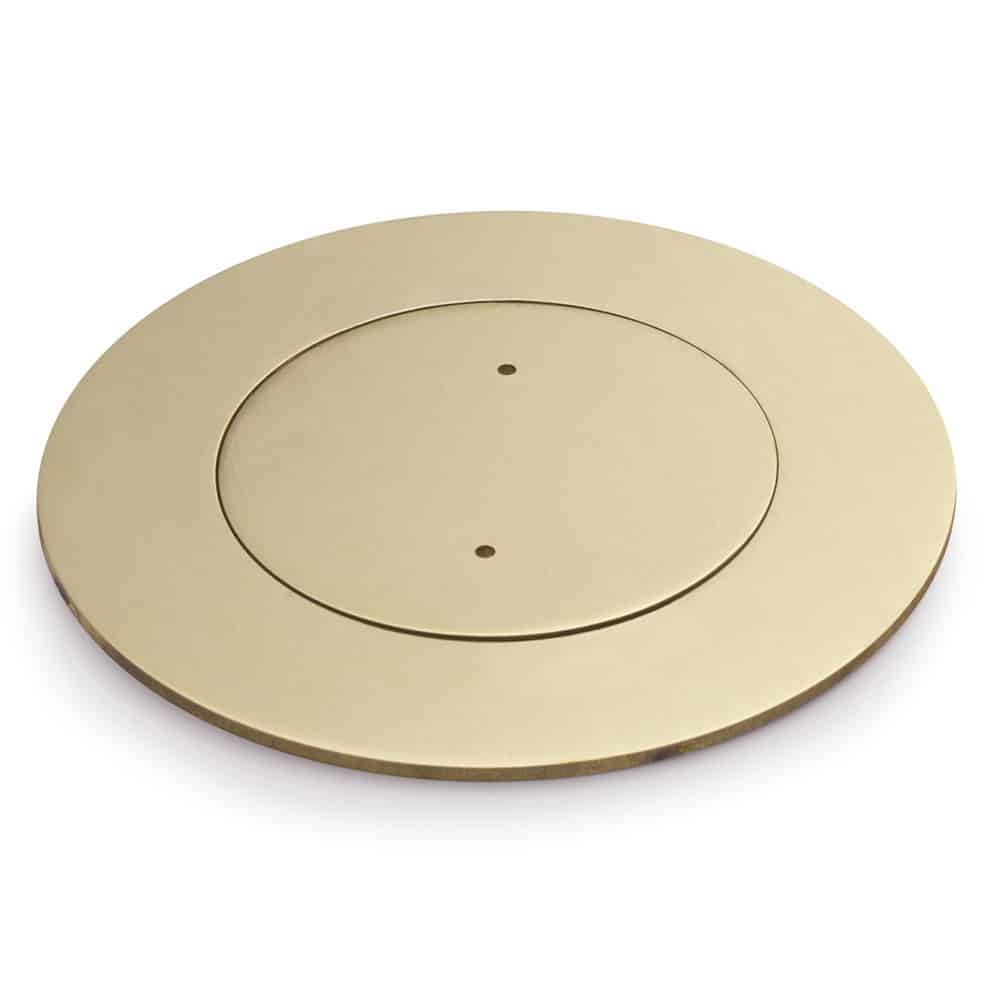

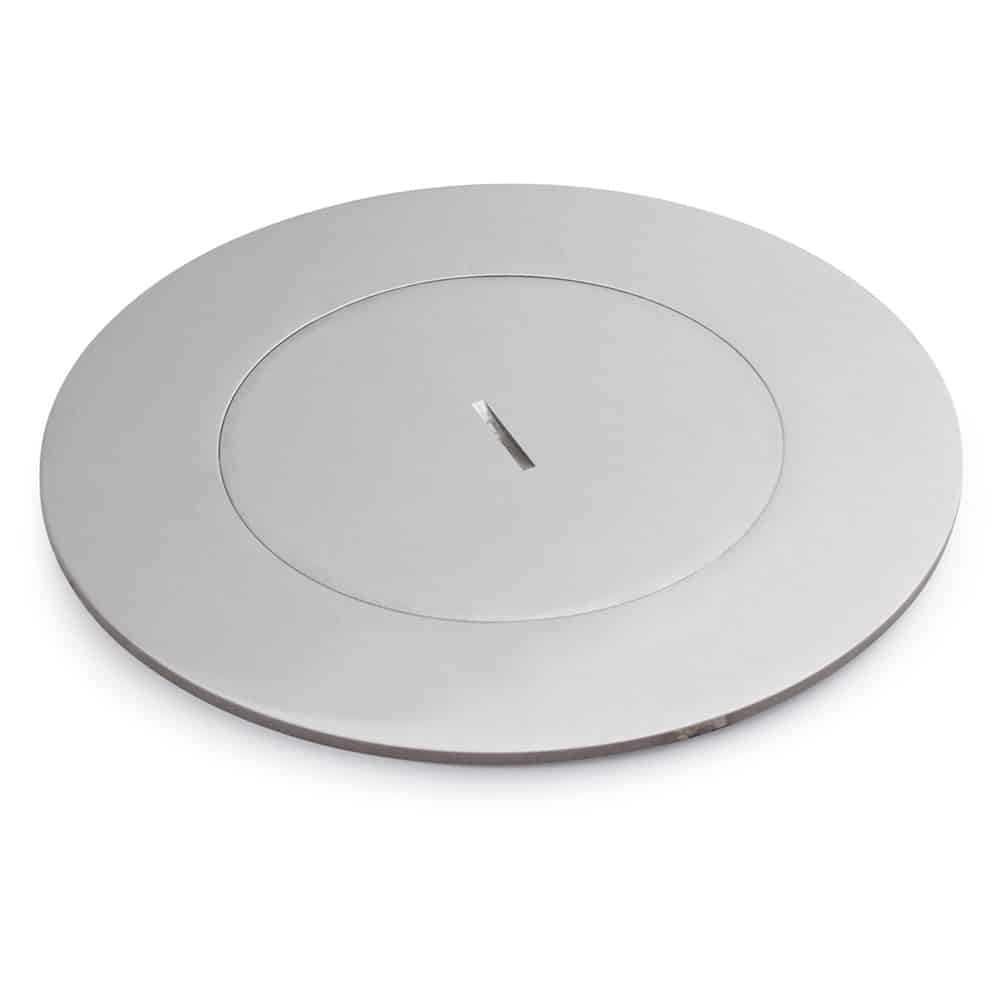

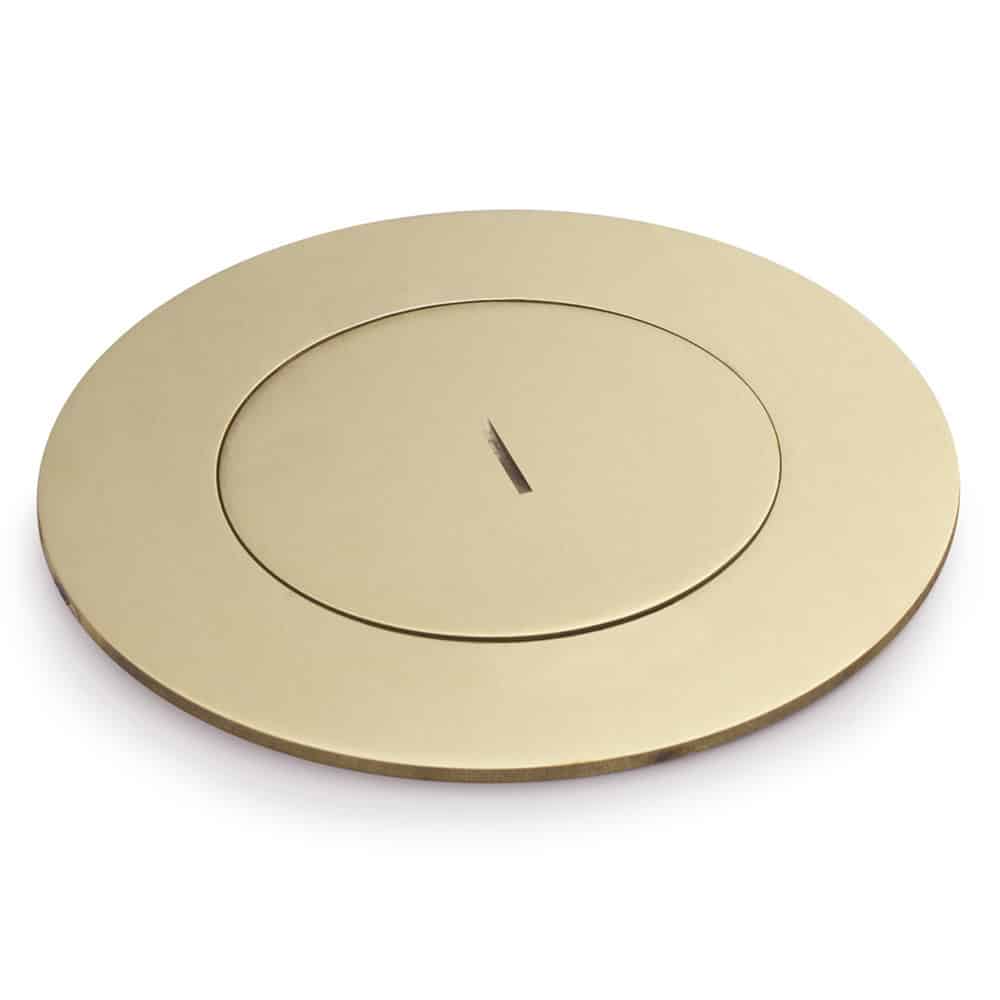

Threaded Coin (Brass, Stainless)

[/vc_column_text][vc_gallery type=”image_grid” images=”7012,7016″ img_size=”130×130″ css=”.vc_custom_1555530112051{margin-top: 0px !important;}”][vc_column_text css=”.vc_custom_1555530235264{margin-bottom: 0px !important;}”]

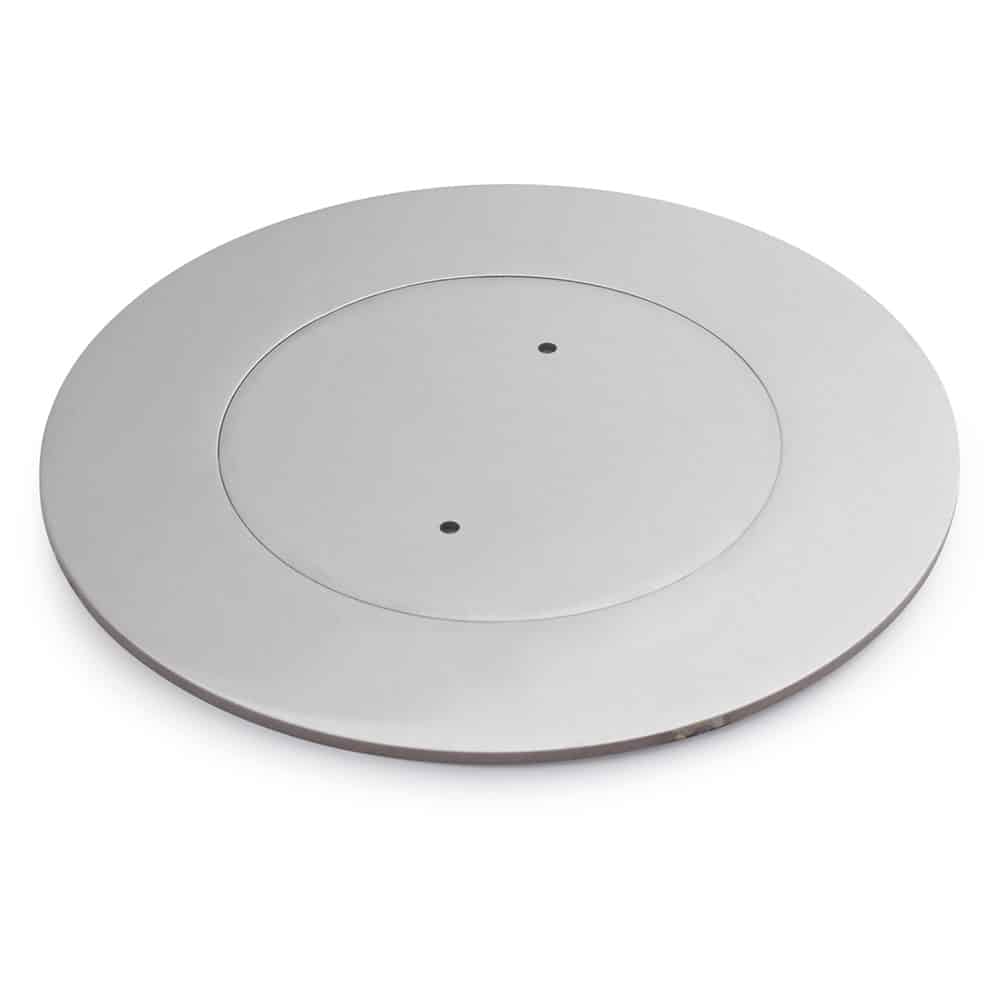

Threaded Security (Brass, Stainless)

[/vc_column_text][vc_gallery type=”image_grid” images=”7013,7017″ img_size=”130×130″ css=”.vc_custom_1555530118349{margin-top: 0px !important;}”][vc_column_text css=”.vc_custom_1663085637200{margin-bottom: 0px !important;}”]

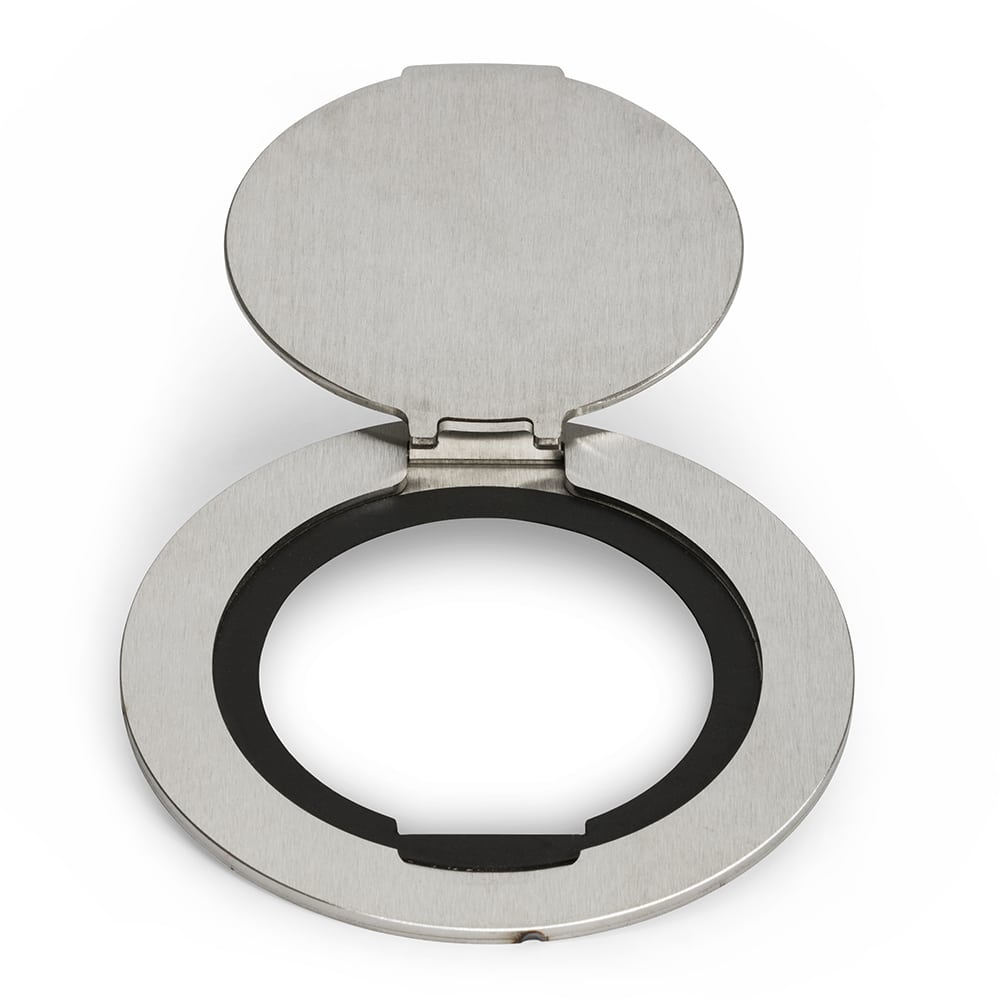

Articulated Hinged Cover (Colors: Stainless Steel, Brass, Black)

[/vc_column_text][vc_gallery type=”image_grid” images=”7851″ img_size=”130×130″ css=”.vc_custom_1663085982134{margin-top: 10px !important;}”][vc_column_text css=”.vc_custom_1663085972963{margin-bottom: 0px !important;}”]

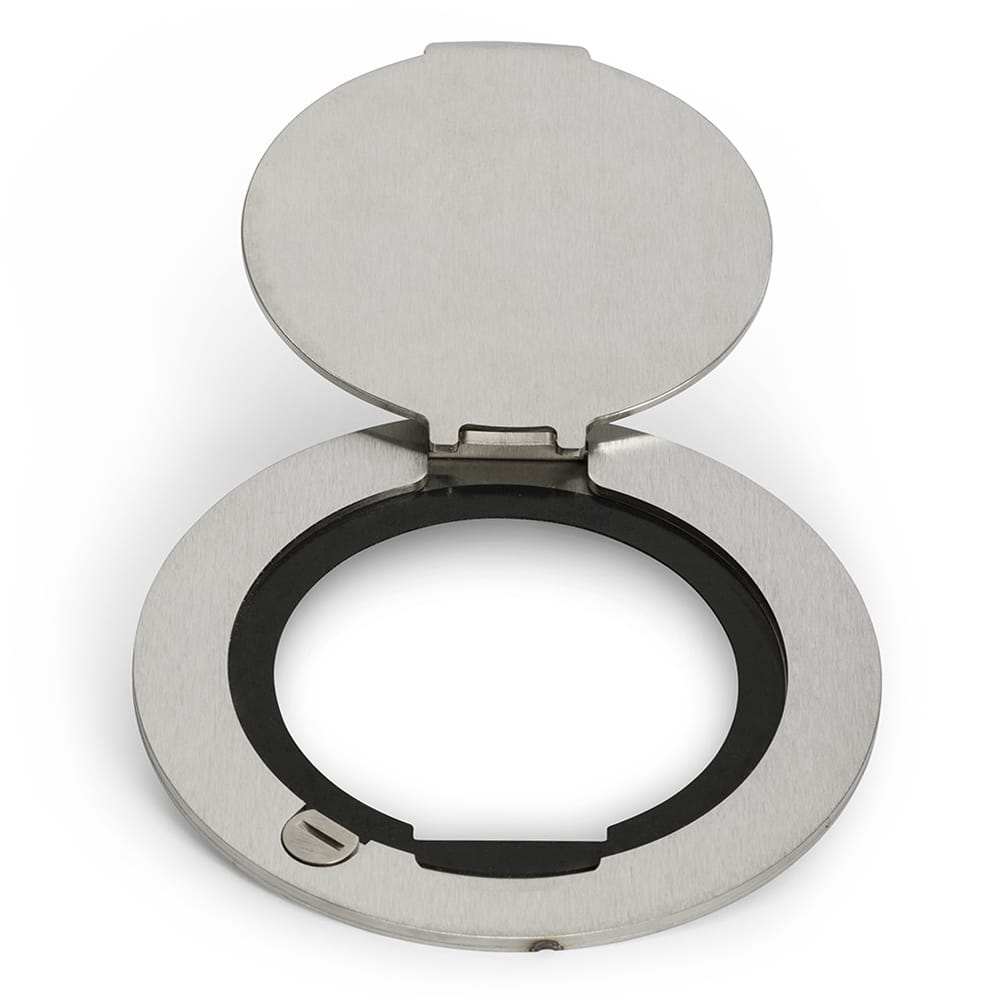

Articulated Hinged Cover 1/4 Turn (Colors: Stainless Steel, Brass, Black)

[/vc_column_text][vc_gallery type=”image_grid” images=”7850″ img_size=”130×130″ css=”.vc_custom_1663085990296{margin-top: 10px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”black” border_width=”2″][vc_column_text]

Configuration options:

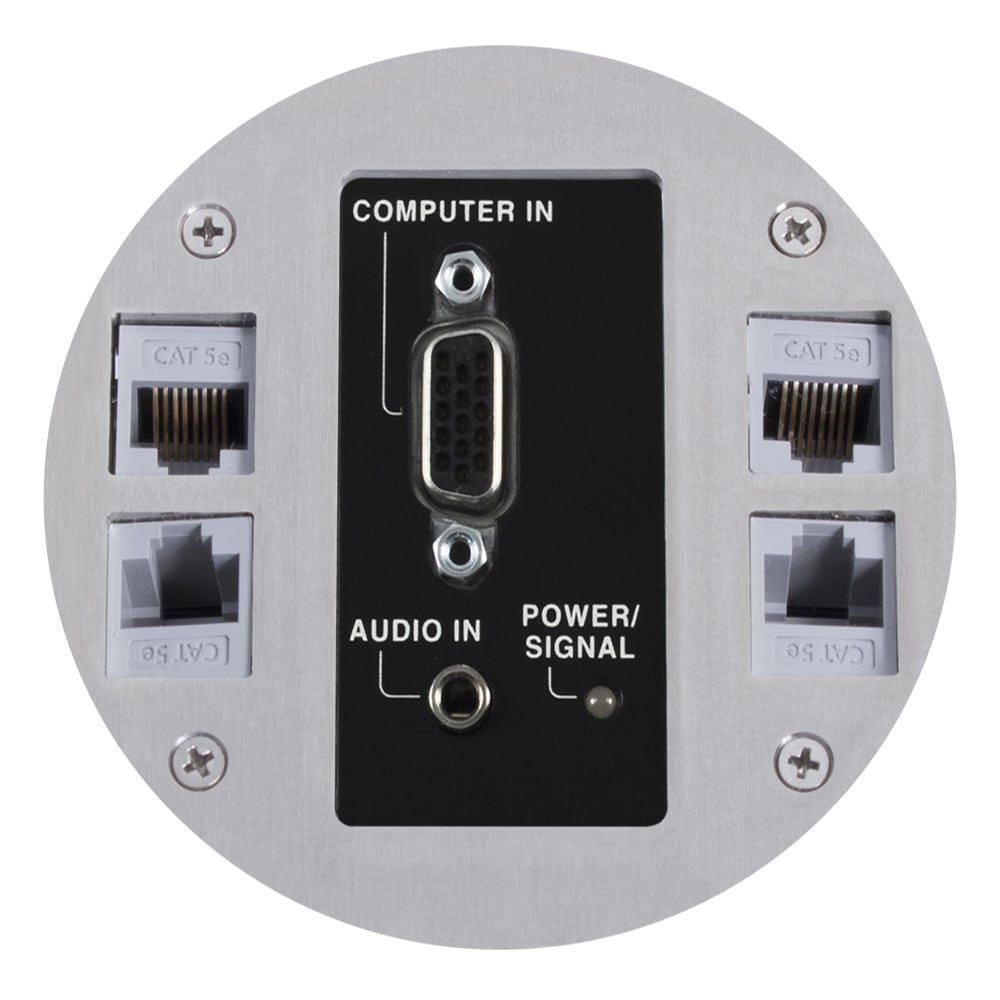

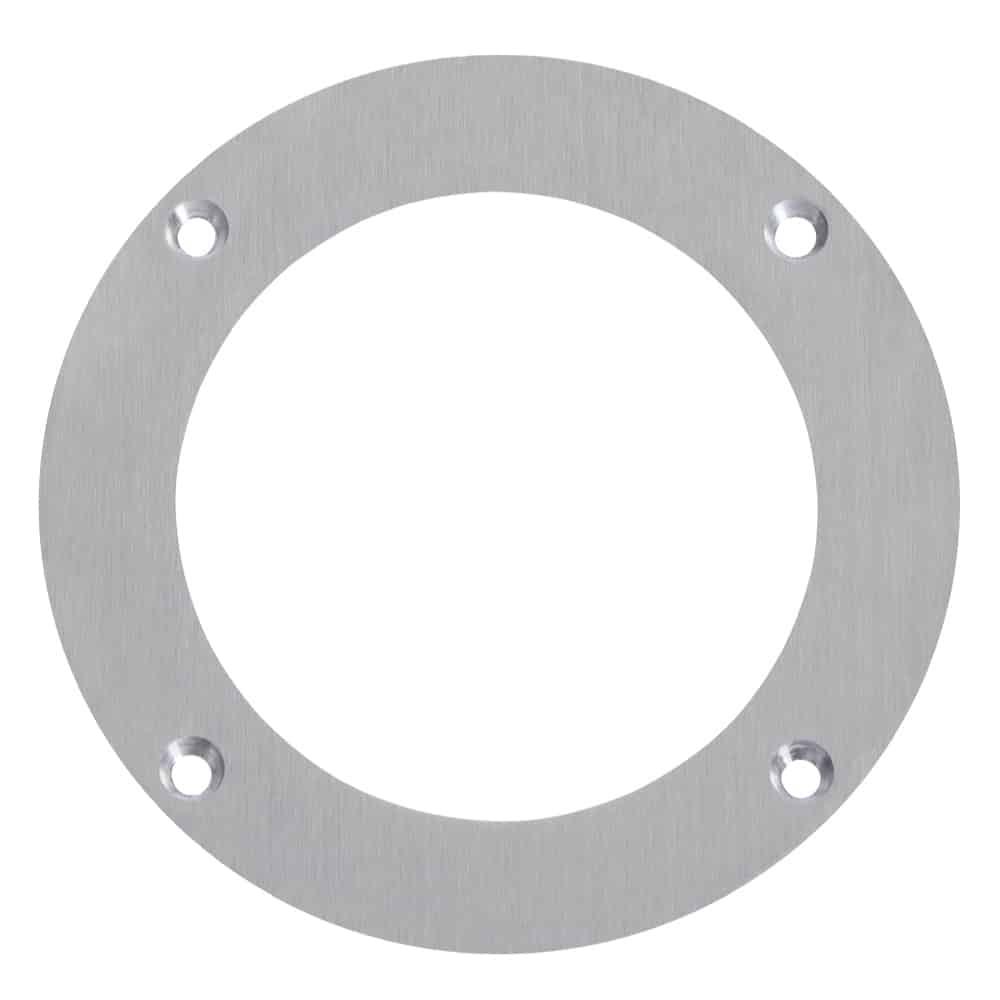

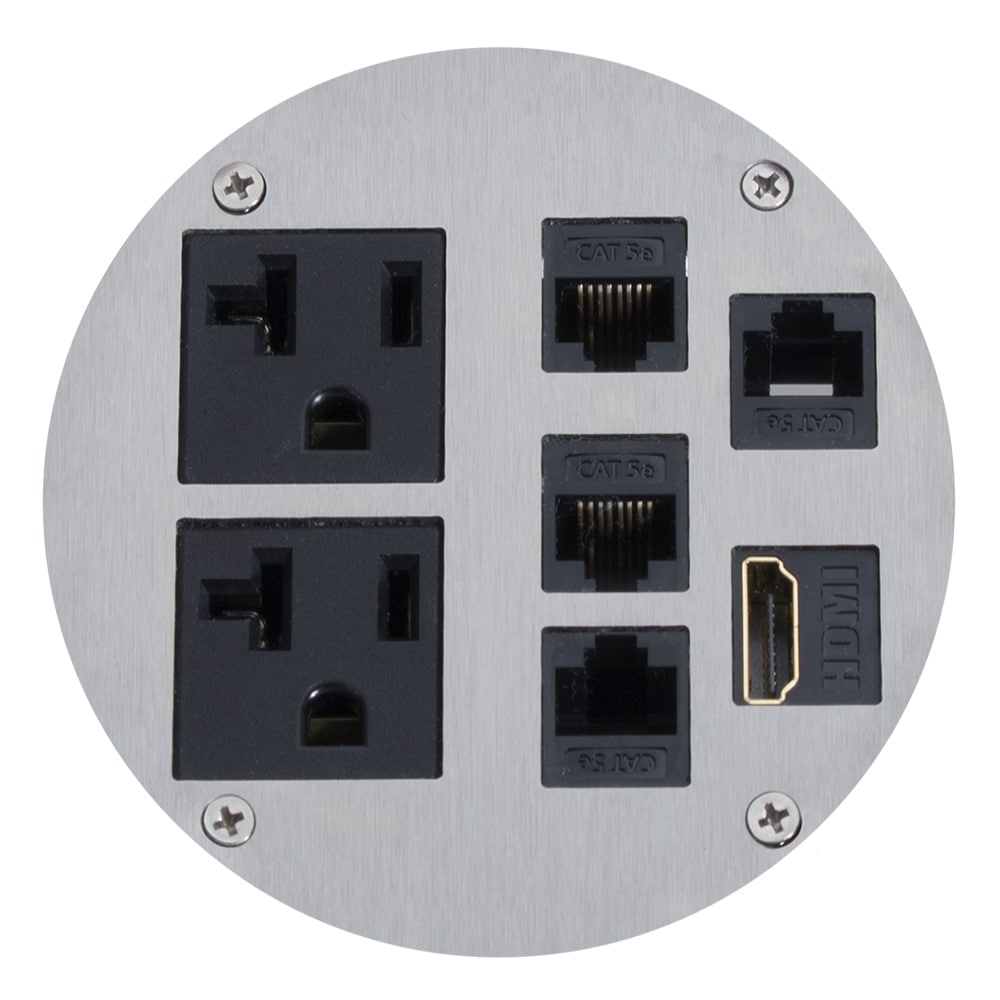

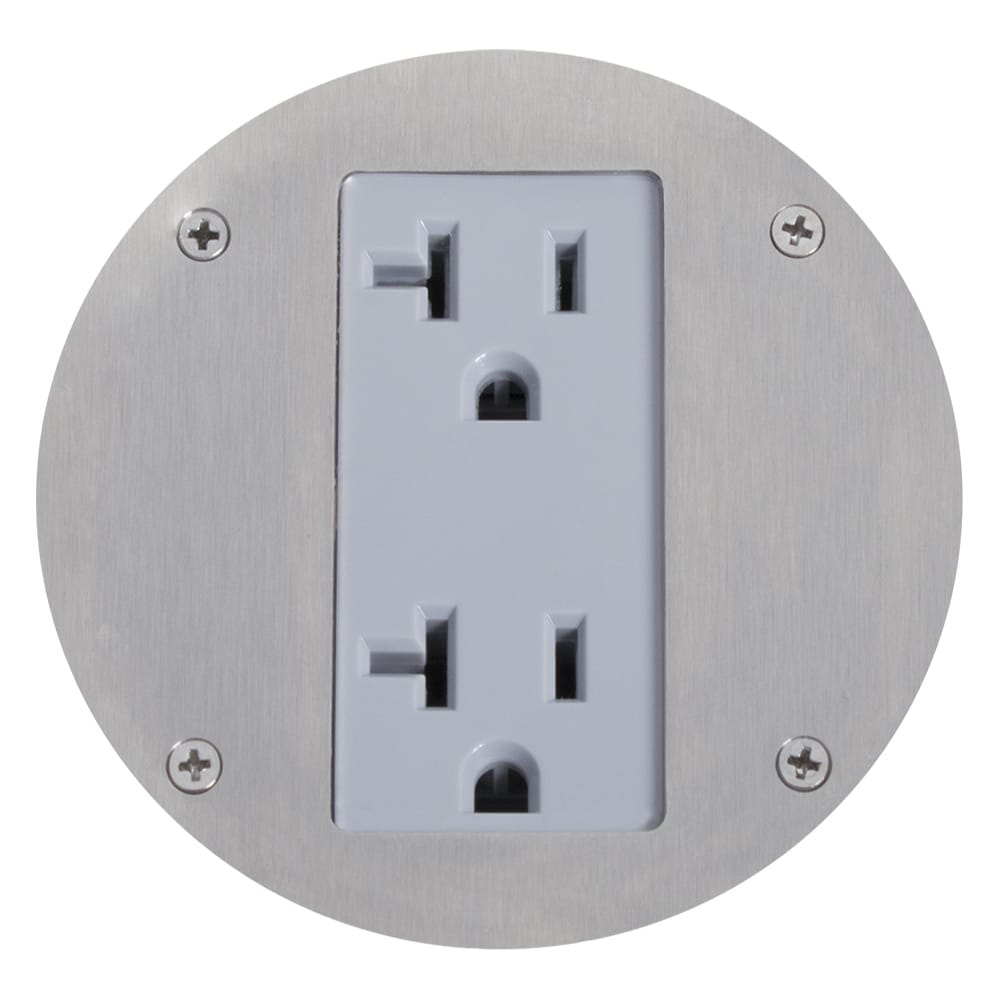

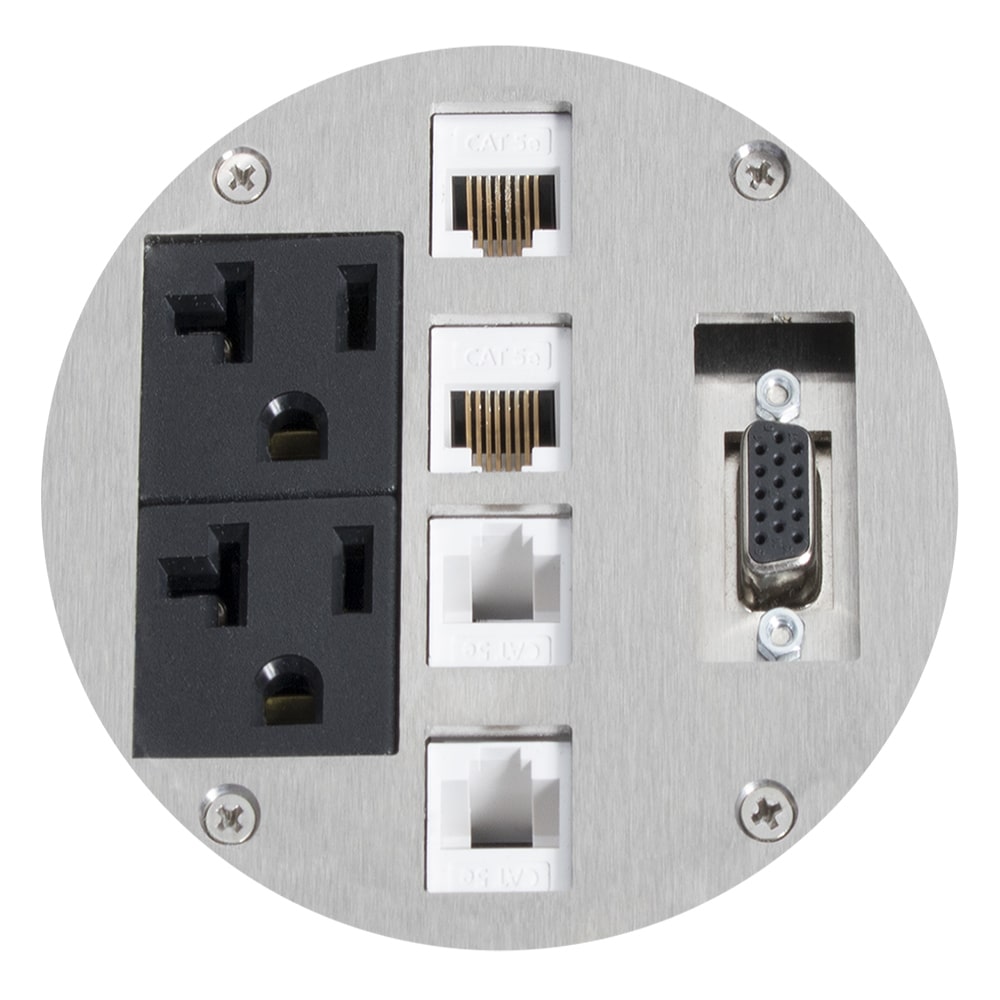

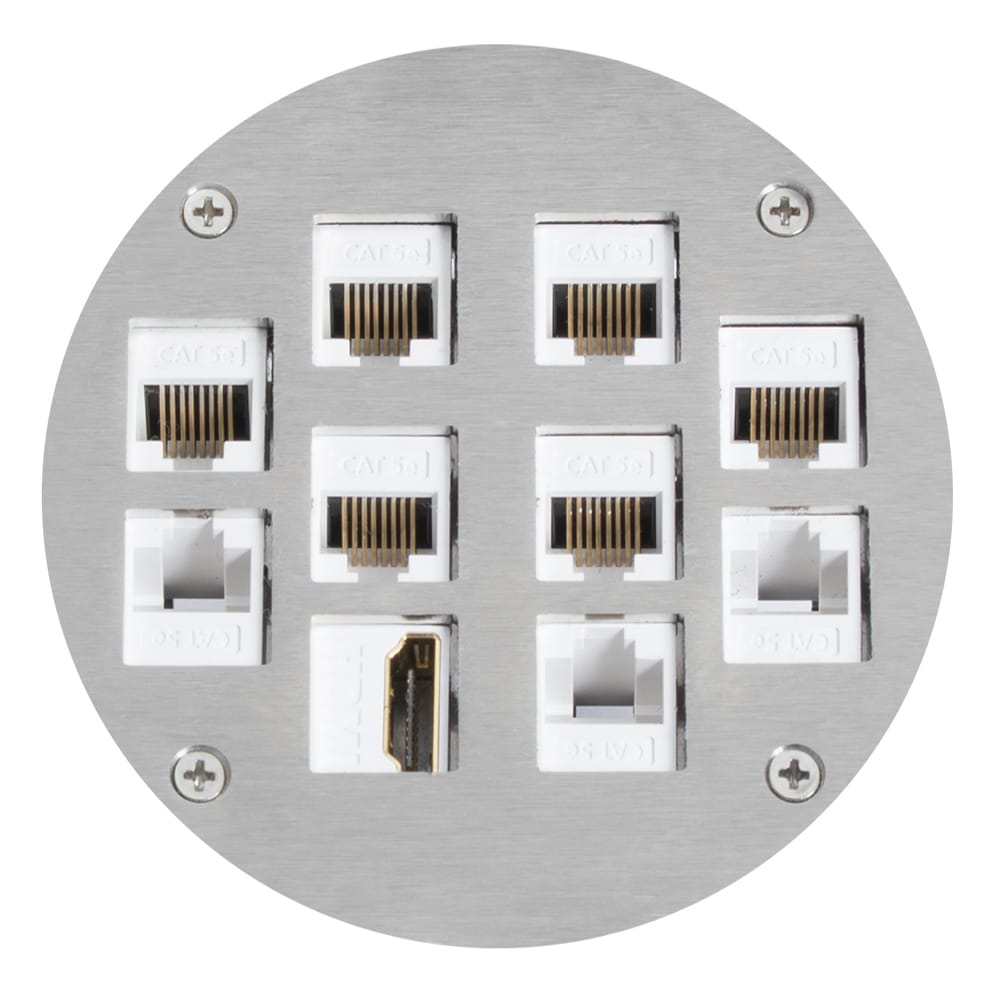

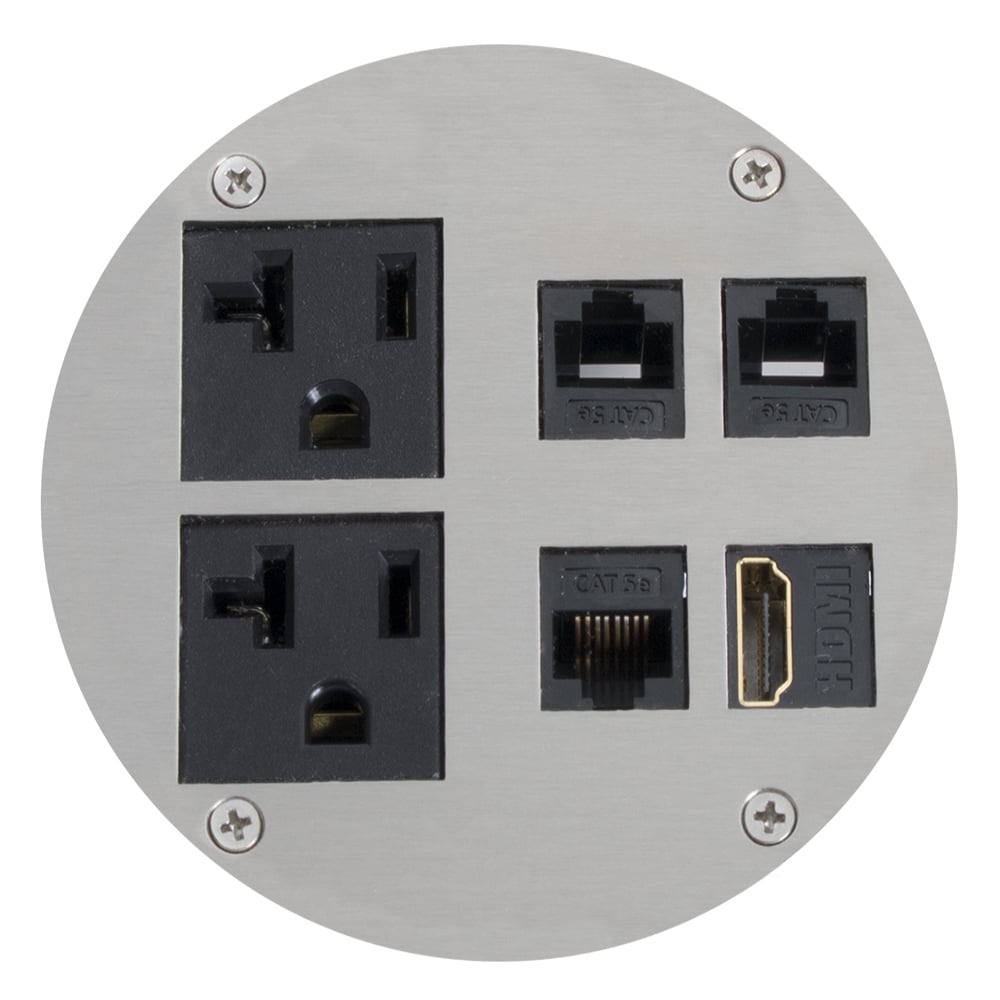

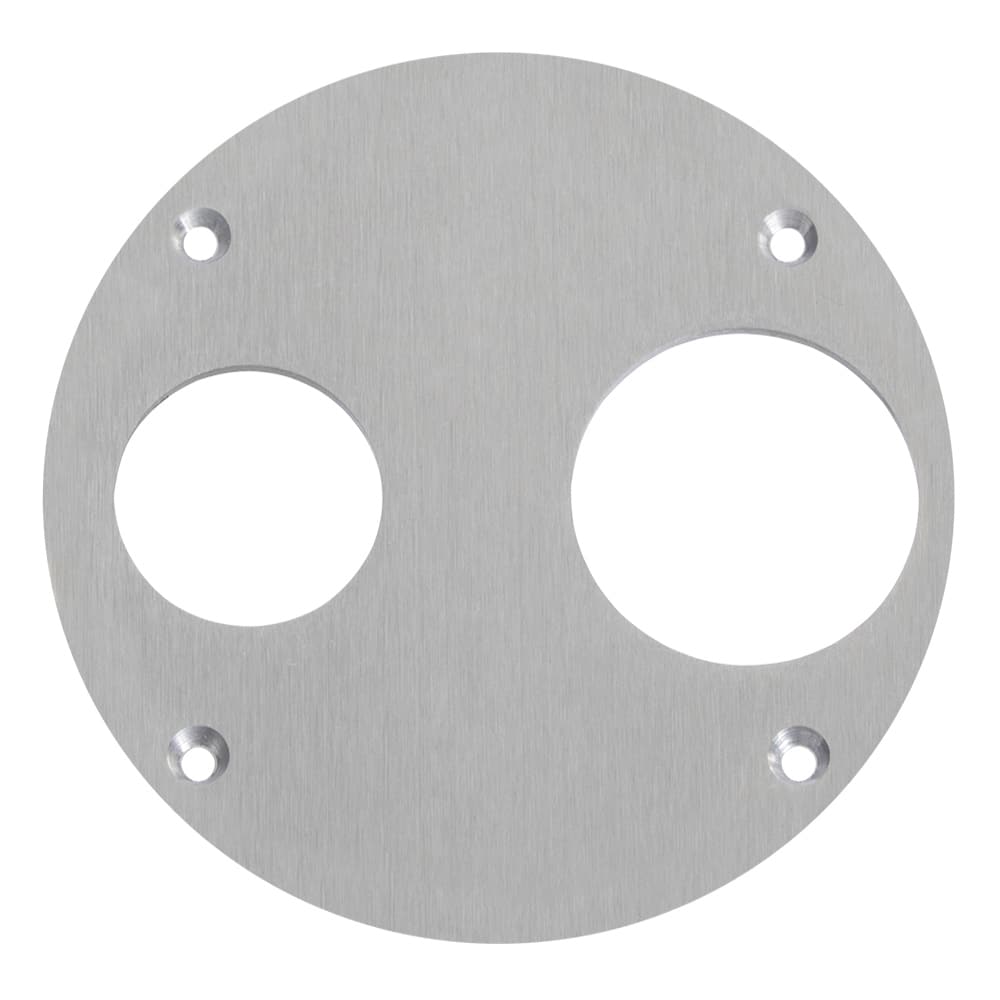

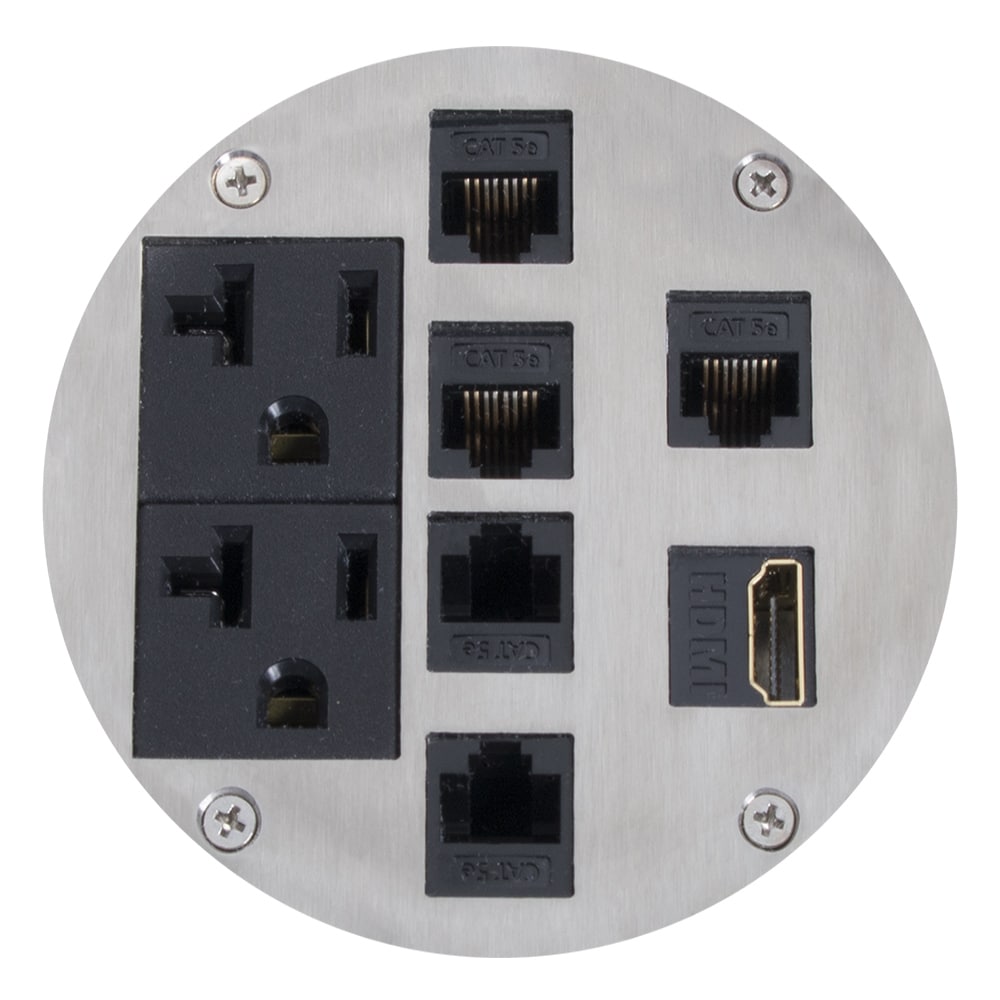

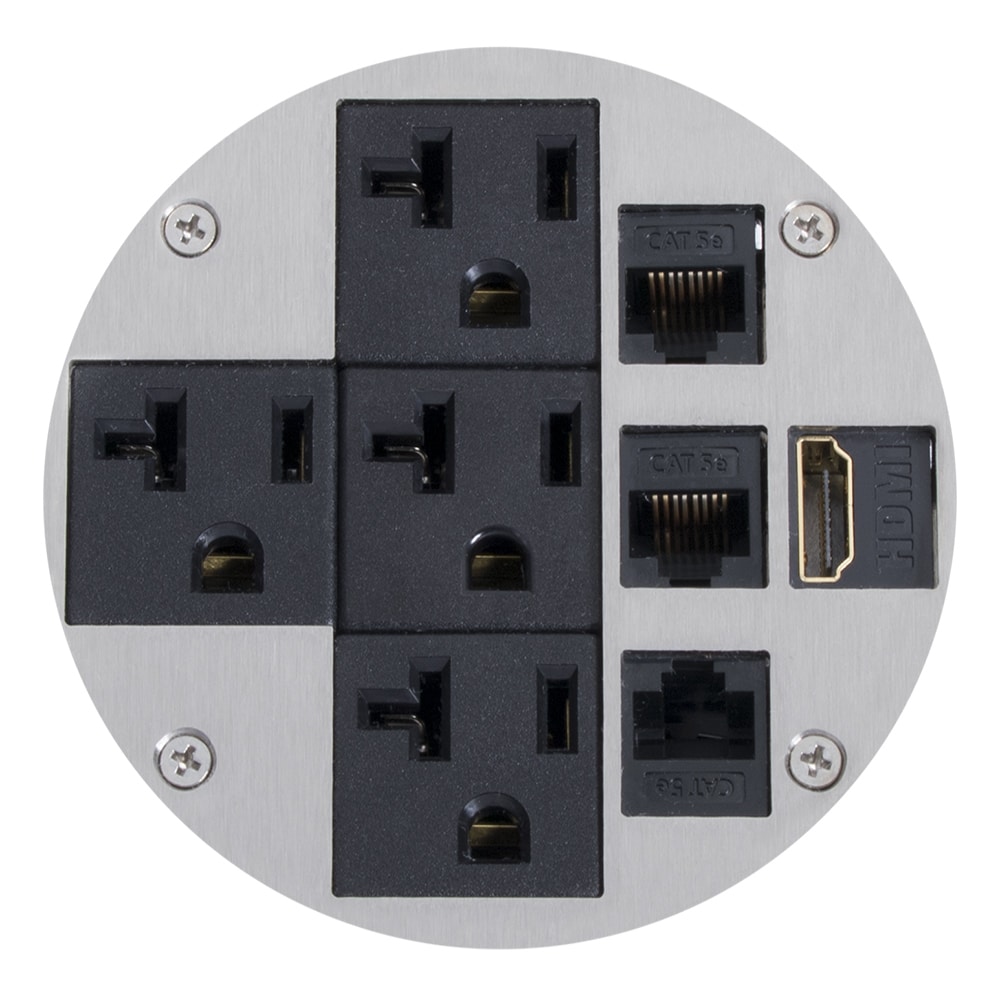

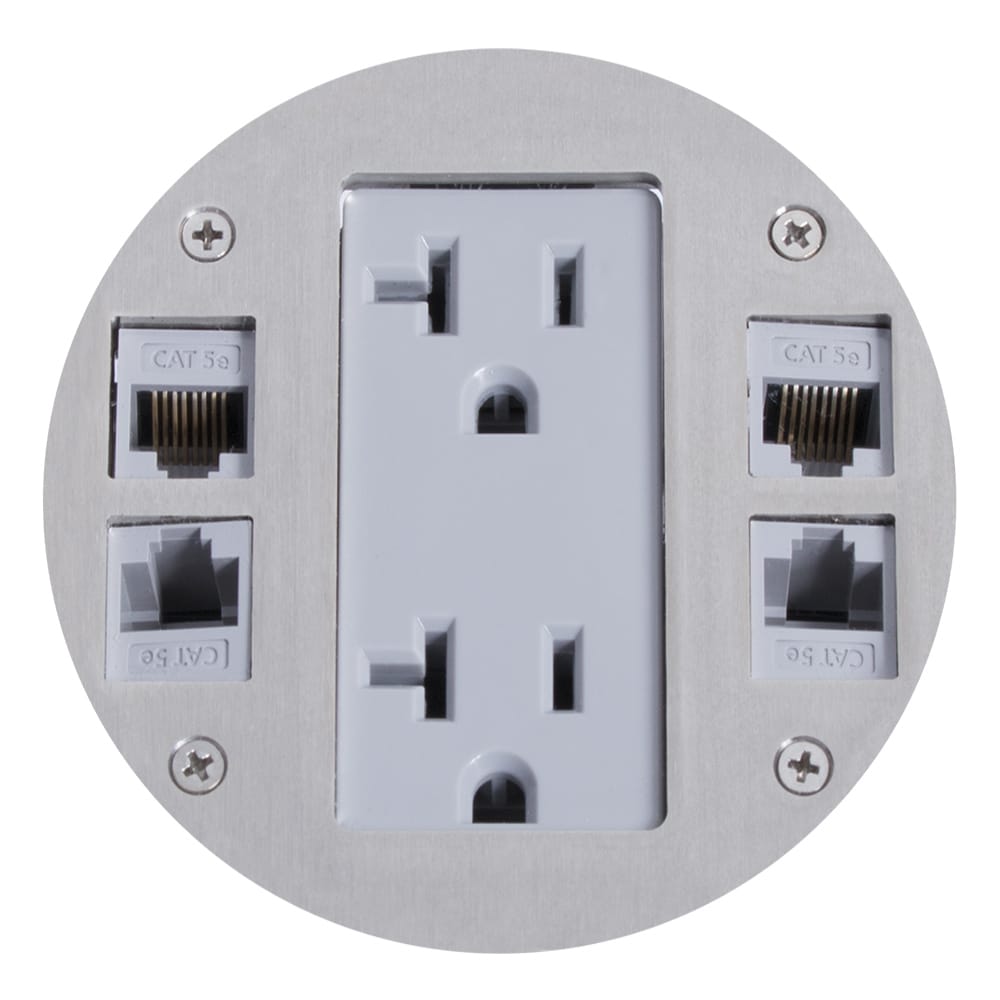

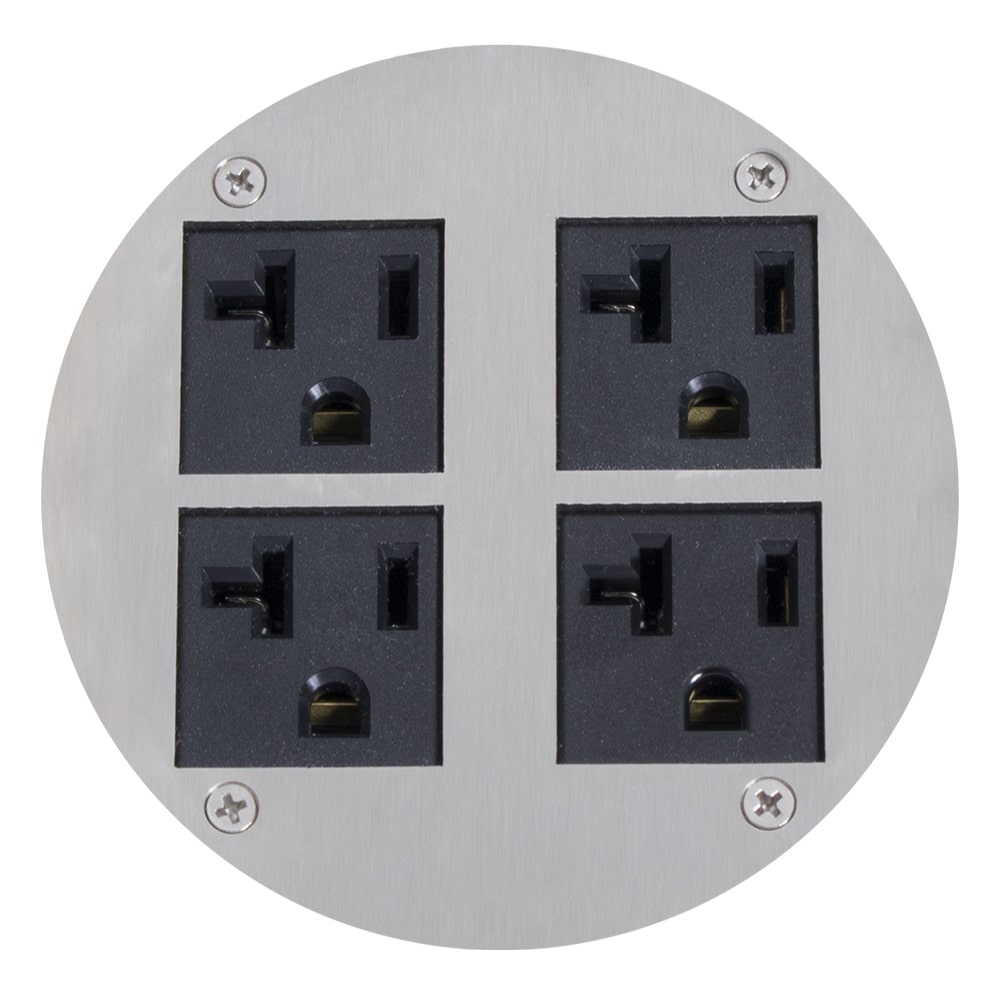

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/3″][vc_column_text css=”.vc_custom_1667599019583{margin-bottom: 0px !important;}”]COMM10 (PDF drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5496″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667600185384{margin-bottom: 0px !important;}”]PASS-THROUGH (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5499″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667600373145{margin-bottom: 0px !important;}”]PWR2-COMM5 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5494″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667600487611{margin-bottom: 0px !important;}”]PWR4-COMM4 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5500″ img_size=”130×130″][/vc_column][vc_column width=”1/3″][vc_column_text css=”.vc_custom_1667600586833{margin-bottom: 0px !important;}”]DP1 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5498″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667600754966{margin-bottom: 0px !important;}”]PWR2-COMM4 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5493″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667600857425{margin-bottom: 0px !important;}”]PWR2-COMM6 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5495″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667600970039{margin-bottom: 0px !important;}”]SYS-COMM (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5504″ img_size=”130×130″][/vc_column][vc_column width=”1/3″][vc_column_text css=”.vc_custom_1667601073589{margin-bottom: 0px !important;}”]DP1-COMM4 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5497″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667601171211{margin-bottom: 0px !important;}”]PWR2-COMM4-DB15 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5492″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667601294401{margin-bottom: 0px !important;}”]PWR4 (PDF Drawing)[/vc_column_text][vc_gallery type=”image_grid” images=”5501″ img_size=”130×130″][vc_column_text css=”.vc_custom_1667410367943{margin-bottom: 0px !important;}”]AV-COMM4[/vc_column_text][vc_gallery type=”image_grid” images=”7842″ img_size=”130×130″][/vc_column][/vc_row]

• Totally enclosed and partitioned compartments for power, voice, and data
• UL 2 hour fire rating for USA and Canada
• 4 to 10 keystone openings for Voice and Data in one unit
• Threaded conduit openings reduce the risk of tampering
• Terminations are accessible from the top of the unit
• Receptacle can be Isolated Ground, GFI, or spec grade, fed with one or two circuits
• Fits a 4 inch round hole snugly and seals to ensure fire separation and structural integrity
• Completely flush with 1/4 inch carpet or other flooring
• Finishes available in stainless steel, brass, or black
• Fast, simple installation (locknut eliminates need for concrete anchors)
• Can be installed through floor before or after carpet installation
• UL listing # E340490CSA approved for Canada, # 212271
• Warranty:  1 year

Fire Resistance Certification (PDF)
Fire Resistance Certification – Canada (PDF)
ETL Authorization to Mark (PDF)
