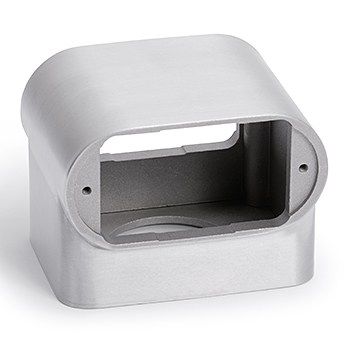

Small Double Sided Pedestal Box-Brushed Aluminum
Small, Double Sided Aluminum Pedestal Box For Single Service (Requires Two Plates, Sold Separately
Part Number: FDN-250-A
Application Selector: Commercial
Type: Pedestal Box
Product Family: FDN-250-A Box and Plates, Pedestal Boxes and Plates, PowerPRO
Finish Color: Aluminum
Service Capacity: Dual
Plug Connection Type: Above Surface
Description
The Lew Electric FDN-250-A is an aluminum floor nozzle, it is double sided and each side requires 1 plate (sold separately). Each side can hold up to 1 duplex receptacle. The box includes a 3/4″ threaded pipe nipple, reducing washer, and lock nut, as well as a neoprene gasket. The box is 4.75″ wide, 3″ tall, and 4.25″ deep. The nozzle is UL listed for the USA, and cUL listed for Canada. The nozzle can also be used in countertops.
***Outlets sold separately***
Specifications
Material: Die cast aluminum
Can hold up to 2 duplex receptacles
Dual sided
Each side requires 1 sold separately plate
UL listing # 489H
UL listed for USA
cUL listed for Canada
Partioned, two 3/4″ conduit openings
Dimensions: 4.75″W x 3″H x 4.25″D
Includes: Pipe nipple, reducing washer, lock nut, gasket
Warranty: 1 year
Certifications and Compliances
- ETL file #4004534
- Conforms to UL Standard 514A and CSA Standard C22.2 #18.1
