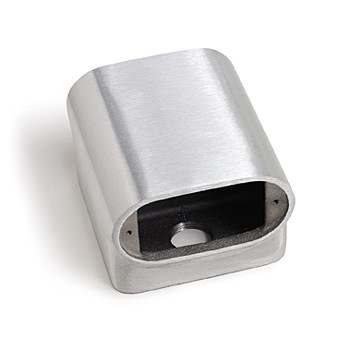

Double Sided/Divided Pedestal Box – Brushed Aluminum
Small, double sided, divided, brushed aluminum pedestal box for dual service.
Part Number: FDN-200-A
Application Selector: Commercial
Type: Pedestal Box
Product Family: FDN-200-A Box and Plates, Pedestal Boxes and Plates, PowerPRO™ Commercial Floor Boxes
Finish Color: Aluminum
Service Capacity: Dual
Plug Connection Type: Above Surface
Description
The Lew Electric FDN-200-A is double sided and divided sand casted aluminum pedestal box. Each side of the box requires 1 plate (sold separately). and can accommodate line voltage and low voltage within the box. The bottom of the box contains two drilled and tapped 3/4″ holes. The unit includes two 3/4″ threaded pipe nipples, reducing washers, and lock nuts, as well as a neoprene gasket. The box is 4.75″ wide, 3″ tall, and 4.25″ deep.
The FDN-200-A is ETL listed for USA and Canada installations and conforms to UL Standard ##514A and CSA Standard ##C22.2 #18.1 . The pedestal box can also be used in countertops.
***Outlets sold separately***
Certifications and Compliances
- ETL file #4004534
- Conforms to UL Standard 514A and CSA Standard C22.2 #18.1
