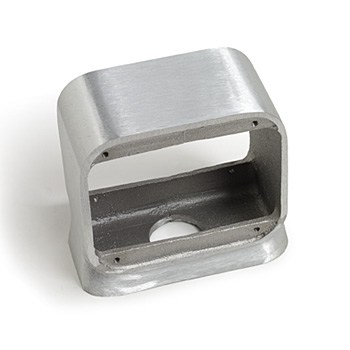

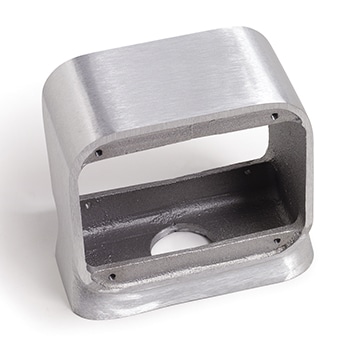

Double Sided Pedestal Box – Brushed Aluminum
Large, double sided , brushed aluminum pedestal box that accommodates up to four outlets (receptacles).
Part Number: FDN-100-A
Application Selector: Commercial
Type: Pedestal Box
Product Family: FDN-100-A Box and Plates, Pedestal Boxes and Plates, PowerPRO™ Commercial Floor Boxes
Finish Color: Aluminum
Service Capacity: Dual
Plug Connection Type: Above Surface
Description
The Lew Electric FDN-100-A is a large, double sided aluminum pedestal box. Each side of the box requires 1 plate (sold separately). and can accommodate up to four duplex receptacles. The bottom of the box is drilled to 1″. The unit includes a 1″ threaded pipe nipple and lock nut, as well as a neoprene gasket. The box is 4.25″ wide, 4.75″ tall, and 4.25″ deep.
The FDN-100-A is ETL listed for USA and Canada installations and conforms to UL Standard ##514A and CSA Standard #C22.2 #18.1 . The pedestal box can also be used in countertops.
***Outlets sold separately***
Certifications and Compliances
- ETL file #4004534
- Conforms to UL Standard 514A and CSA Standard C22.2 #18.1
