Dek Box® (BLANK) – Brown Poly Cover
Outdoor deck box kit with brown polycarbonate cover, wire whip and marine grade junction box (includes Decora plate but no receptacle).
Part Number: DB-1-DB
Application Selector: Outdoor
Type: Dek Box
Product Family: DEK-BOX®, Outdoor Power Solutions
Cover Shape: Rectangular
Finish Color: Brown
Service Capacity: Single
Plug Connection Type: Recessed
Description

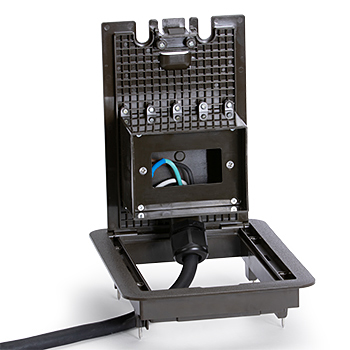

The Lew Electric DB-1-DB DEK-BOX® is an ETL listed, in use, waterproof assembly that is designed for all types of wood and composite decks. It comes prewired with a 2-foot wire whip that can be wired to any 20 AMP decora style or GFCI duplex receptacle (receptacle not included). Also included is a marine grade, watertight junction box. The cover is made from a heavy-duty polycarbonate and comes in the color brown. The unit is held in place by four self-tightening wing type screws that have a lip to secure the bottom of the cover to the bottom of the deck. The DB-1-DB must be connected to a dedicated 20 AMP GFCI breaker if not using a GFCI receptacle. An outdoor rated, weather resistant (WR) receptacle must be used.
The Lew Electric DB-1-DB is ETL listed for USA and Canada installations and Conforms to UL Standard #514D and CSA Standard #C22.2 #42
Certifications and Compliances
- ETL file # 4004534
- Conforms to UL 514-D
- Conforms CSA C22.2#42.1
- UL listed junction box # 3PK4
- DEK-BOX®
