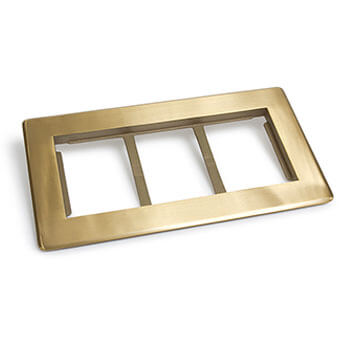

3 Gang Carpet Flange – Brass

Three gang brass carpet flange for 1100 Series floor boxes.

Part Number: CF-1103-DFB

Application Selector: Commercial

Type: Flange

Product Family: 1100 Series Rectangular Boxes Covers and Flanges, Covers and Flanges, PowerPRO™ Commercial Floor Boxes

Finish Floor Type: Carpet

Finish Color: Brass



3 Gang Carpet Flange – Brass


    https://staging.lewelectric.com/wp-content/uploads/2016/02/CF-1103-DFB.jpg
    https://staging.lewelectric.com/wp-content/uploads/2016/02/CF-1103-DFB-75x75.jpg

    Description

    The Lew Electric CF-1103-DFB is a three gang carpet flange made specifically for the 1100 Series of floor boxes and covers. The flange is a beautiful brass color and will add an elegant look in a carpeted room. The flange adds 3/8″ to the top of the box being used to accommodate for carpet and padding. The flange measures 6 1/4″ X 11 1/8″, and hangs over the sides of the 1100 series box box by 1.04″. Brass mounting plate attachment screws are included.

    The Lew Electric CF-1103-DFB is ETL listed for USA and Canada installations and Conforms to UL Standard #514D and CSA Standard #C22.2 #42

    Certifications and Compliances

    Intertek_ETL_Listed_C_US

    • ETL file #4004534
    • Conforms to UL Standard 514D and CSA Standard C22.2 #42
    Resources
    CF-1103-DFB DWG Drawing
    Download
    CF-1103-DFB PDF Drawing
    Download
