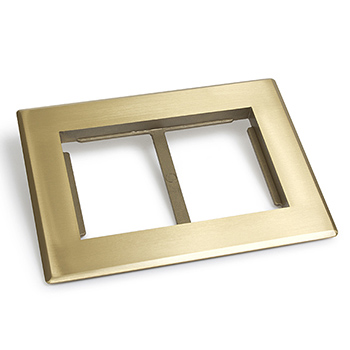

2 Gang Carpet Flange-Brass
Two Gang Brass Carpet Flange For 1100 Series Floor Boxes
Part Number: CF-1102-DFB
Application Selector: Commercial
Type: Flange
Product Family: 1100 Series Rectangular Boxes Covers and Flanges, Covers and Flanges, PowerPRO
Finish Floor Type: Carpet
Finish Color: Brass
Description
Two Gang Brass Carpet Flange, 6 1/4″ X 8 1/4″
The Lew Electric CF-1102-DFB is a dual gang carpet flange made specifically for the 1100 series of floor boxes. The flange is a beautiful brass color and will add an elegant look in a carpeted room. The flange adds 3/8″ to the top of the box being used to accommodate for carpet and padding. The flange is 8.5″ x 6.5″, the flange hangs over the sides of the box by 1.04″. Brass mounting screws are included.
Specifications
Carpet flange for 1100 series floor boxes
Size: Two gang
Color: Brass
Dimensions: 8.5″ x 6.5″
Overhang on side of box: 1.04″
Flange adds 3/8″ to top of floor box
Brass mounting screws included
Warranty: 1 year
Certifications and Compliances
- ETL file #4004534
- Conforms to UL Standard 514D and CSA Standard C22.2 #42
