Die Cast Aluminum Floor Box with Cover
Brass, Screw Plug, Flush Mounted, Drop In Floor Box With 15A(TR) Duplex Receptacle
Part Number: 812-DA-SP-B
Application Selector: Residential
Type: Floor Box
Product Family: 812 Series Boxes Cover and Flanges, Box Assemblies, POWERDEN
Floor Box Type: Round Drop In
Finish Floor Type: Concrete, Wood
Floor Box Cover Type: Screw Plug
Cover Shape: Round
Finish Color: Brass
Box Material: Die Cast Aluminum
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Receptacle Included: Duplex 15A
Description

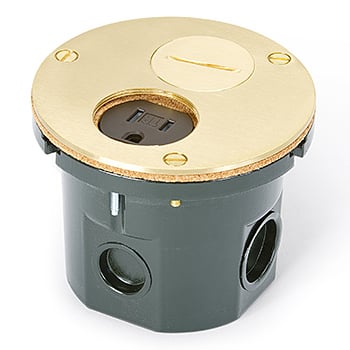

Lew Electric 812-DA-SP-B Flush Mounted Round Floor Box – 15A Tamper-Resistant Duplex Outlet, Brass Cover, ETL LISTED
The Lew Electric 812-DA-SP-B flush mount round floor box is a heavy-duty, ETL listed die cast aluminum floor box designed for reliable, in-floor electrical power distribution. This model includes a durable brass screw plug cover for a clean, low-profile finish, making it perfect for flush installation in wood floors. It can also be used in concrete applications.
Equipped with a built-in 15-amp tamper-resistant duplex receptacle, the 812-DA-SP-B provides safe, code-compliant power access in both residential and commercial spaces. The die cast aluminum box includes 1/2-inch and 3/4-inch threaded conduit openings, offering flexible wiring options for new or retrofit electrical installations.
This versatile round floor box can also be installed in tile or carpet flooring with the addition of an optional floor flange (see product links below for all compatible flange and cover options). Ideal for use in living rooms, offices, conference rooms, and more, the 812-DA-SP-B combines functionality, safety, and a sleek brass finish.
Replacement cover: 523-DP
Replacement plug: 6213 (Brass)
Carpet/Tile Flange Options: SCF-1 or TCP-2
Specifications
- Plate: 1/8″ Brass
- Outlet: 15A, TR duplex receptacle
- 2 watertight screw plugs
- Includes 1/16″ cork gasket
- Die cast aluminum round box with 1/2″ and 3/4″ threaded conduit openings
- Cover size: 4″ round
- Hole size: 3.5″ round
- Depth: 3.25″ deep
- Capacity: 15.5 cubic inches
- Warranty: 1 year
Certifications and Compliances
- ETL file #4004534
- Conforms to UL 514A
- Conforms CSA C22.2 #18.1
- UL listed receptacle #E309821
