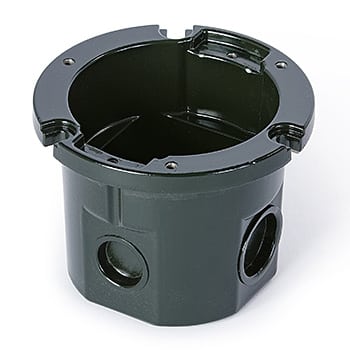

Round Floor Box (Box Only) for Drop In or Concrete
Flush Mounted, Die-Cast Aluminum, Round Floor Box – Box Only
Part Number: 812-DA
Application Selector: Residential
Type: Floor Box
Product Family: 812-DA Series Boxes Cover and Flanges, Box Assemblies, POWERDEN
Floor Box Type: Round Drop In
Finish Floor Type: Concrete, Wood
Cover Shape: Round
Box Material: Die Cast Aluminum
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Description
Lew Electric 812-DA Round Floor Box – ETL Listed Die-Cast Aluminum with 15A Tamper-Resistant Duplex Outlet
The Lew Electric 812-DA round floor box is a durable, ETL-listed die-cast aluminum electrical box, ideal for flush mount installation in wood floors. It can also be used in concrete applications.
This floor box features a 15-amp tamper-resistant duplex receptacle and supports both 1/2″ and 3/4″ threaded conduit connections for flexible wiring options.
While it is designed for wood flooring, it can also be installed in tile or carpeted floors with the optional floor box flange and 4-inch cover (sold separately). Explore compatible covers and flanges via the link below to complete your installation.
Specifications
- Plate: None
- Outlet: 15A, TR duplex receptacle
- Die cast aluminum round box with 1/2″ and 3/4″ threaded conduit openings
- Hole size: 3.5″ round
- Depth: 3.25″ deep
- Capacity: 15.5 cubic inches
- Warranty: 1 year
Certifications and Compliances
- ETL file #4004534
- Conforms to UL 514A
- Conforms CSA C22.2 #18.1
- UL listed receptacle #E309821
