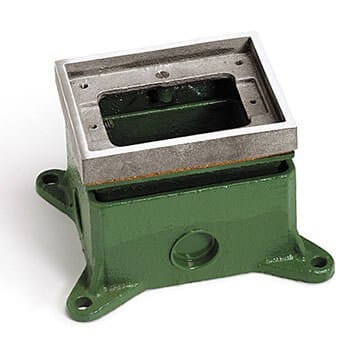

1 Gang Deep Cast Iron Floor Box
One gang, deep, fully adjustable, cast iron floor box for commercial concrete applications,with brushed aluminum tile frame.
Part Number: 1101-58-A
Application Selector: Commercial
Type: Floor Box
Product Family: 1100 Series Rectangular Boxes Covers and Flanges, Cast Iron Boxes, PowerPRO™ Commercial Floor Boxes
Floor Box Type: Rectangular Concrete
Finish Floor Type: Concrete, Tile
Finish Color: Aluminum
Box Material: Cast Iron
Box Capacity: 1G
Service Capacity: Single
Plug Connection Type: Surface
Description
The Lew Electric 1101-58-A is a deep, heavy-duty, cast iron, concrete floor box designed for strength, reliability, and ease of installation. This fully adjustable, single gang floor box includes a durable aluminum tile frame and offers 3/8″ of post-installation adjustment, allowing precise leveling after concrete is poured. Adjustment is quick and easy using four plate attachment screws and a standard screwdriver. With a 3.32″ deep design and offering 13 cubic inches of interior space, this floor box provides ample room for electrical wiring and devices. Each side features a 3/4″ threaded opening for convenient wiring access. The unit ships with a protective concrete cover that safeguards the box during the concrete pour, ensuring a clean, professional finish.
For carpeted installations, pair the box with the optional CF-1101-DFB-A brushed aluminum carpet flange (sold separately), which adds 3/8″ of height to account for carpet and padding. For tile or other flush installations, no flange is required. Simply pour concrete and then set the tile frame to the height of the finished floor level. To complete installation, one 1100 series brushed aluminum cover is required.
